Insulating mats with dielectric strength 50 kV

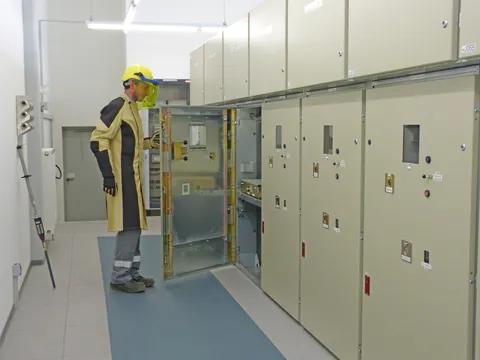

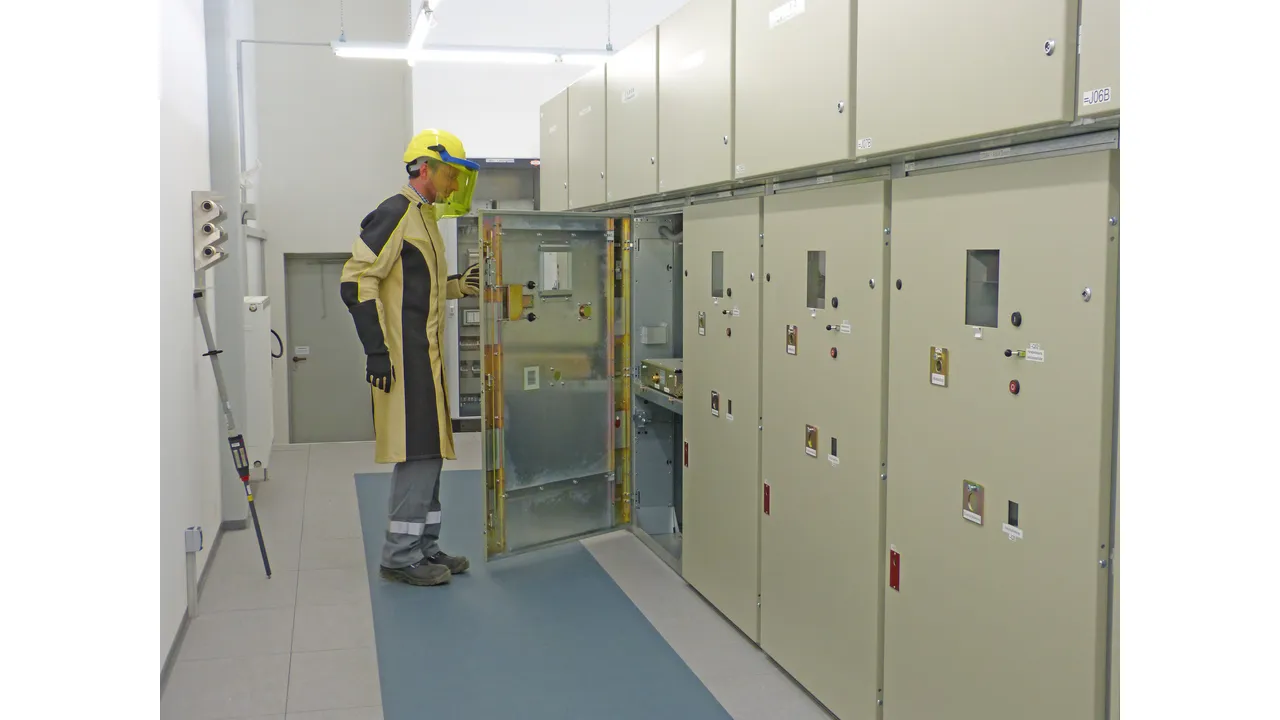

  • For use in electrical switch and test rooms
  • Not permitted as standing surface insulation for live working!
  • Rolled goods or cut to size

Insulating mat with a dielectric strength of 50 kV, rolled goods

1 Product

Part No. 785459 IMG SAN 1M 10M

GTIN 4013364115057, Customs tariff No. (EU): 40082190, Gross weight: 56.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Nominal voltage up to (UN ) 50 kV
Material Polymer NR/SBR
Temperature resistance -55 °C ... +70 °C
Length 10 m
Width 1000 mm
Thickness 4.5 mm
Colour Grey ●
Standard VDE 0303-21

Product 785459 was added to Notepad.

Go to Notepad

Product 785459 was added to the cart.

Go to Web-Shop

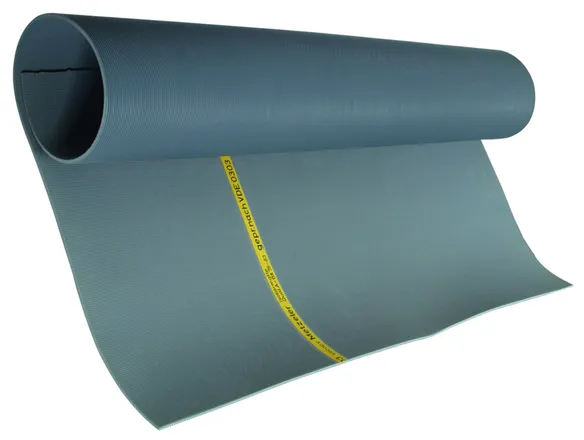

Insulating mat with a dielectric strength of 50 kV, cut to size

1 Product

Part No. 785458 IMG SAN 1M ..M

GTIN 4013364115064, Customs tariff No. (EU): 40082190, Gross weight: 5.80 g/mm, PU: 500.00 mm

Images

Additional information



Technical data

Nominal voltage up to (UN ) 50 kV
Material Polymer NR/SBR
Temperature resistance -55 °C ... +70 °C
Length up to 10 m *)
Width 1000 mm
Thickness 4.5 mm
Colour Grey ●
Standard VDE 0303-21
Minimum order length 1000 mm
*) Length to be specified when ordering!
Note: Can only be supplied in 500 mm increments.

Product 785458 was added to Notepad.

Go to Notepad

Product 785458 was added to the cart.

Go to Web-Shop
