Downpipe Clamps

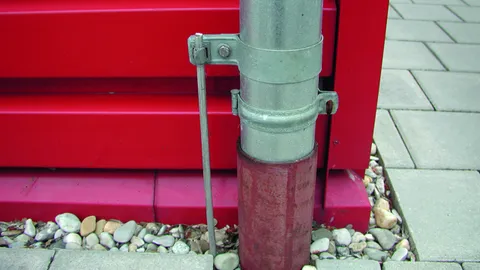

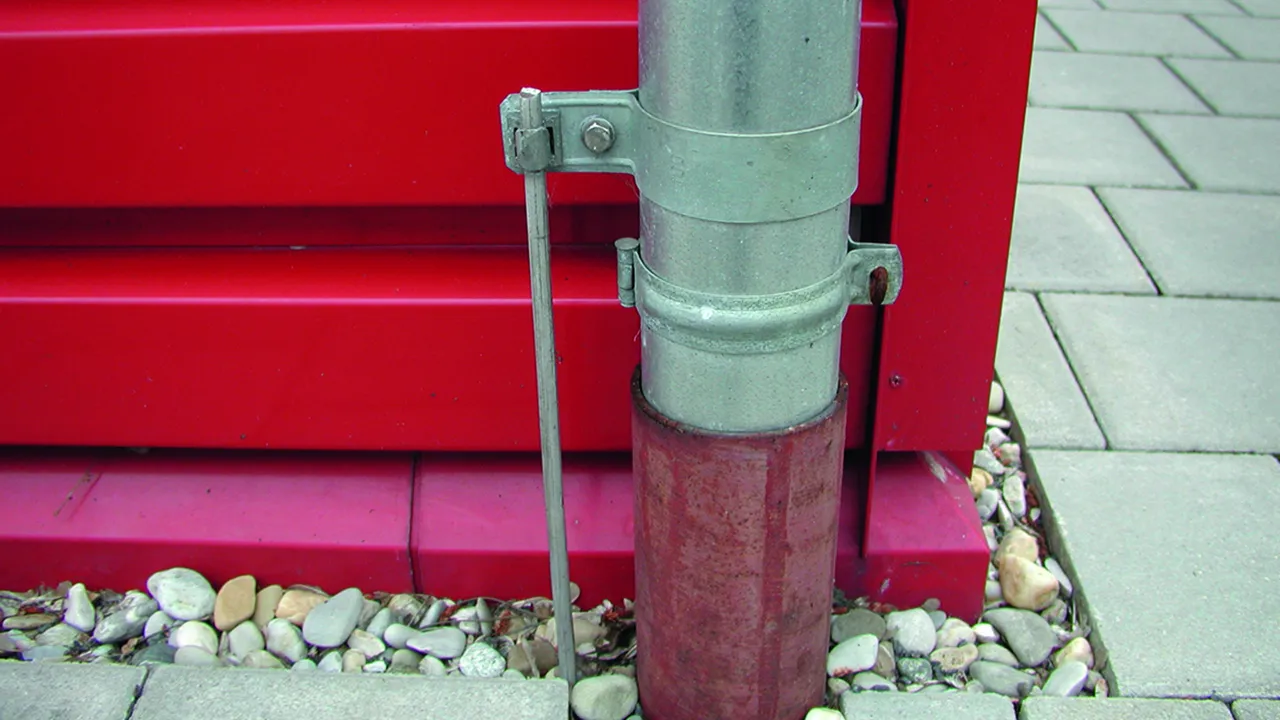

Pipe clamps for connecting downpipes to the lightning equipotential bonding according to IEC/EN 62305-3.
Connection possibilities for Rd, e.g. with KS connector (Part No. 301 000) or with clamping piece (Part No. 390 150) (depending on material).

For fixed pipe diameters

4 Products

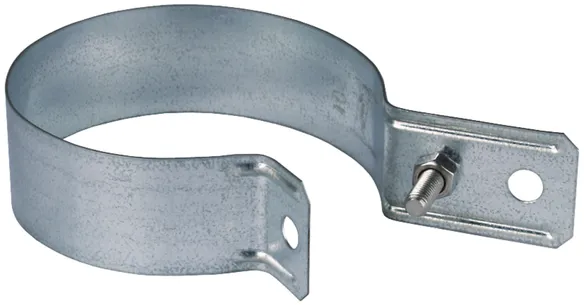

Part No. 420100 RRS 100 B11 STTZN

GTIN 4013364022805, Customs tariff No. (EU): 85359000, Gross weight: 141.96 g, PU: 50.00 pc(s)

Images

Additional information

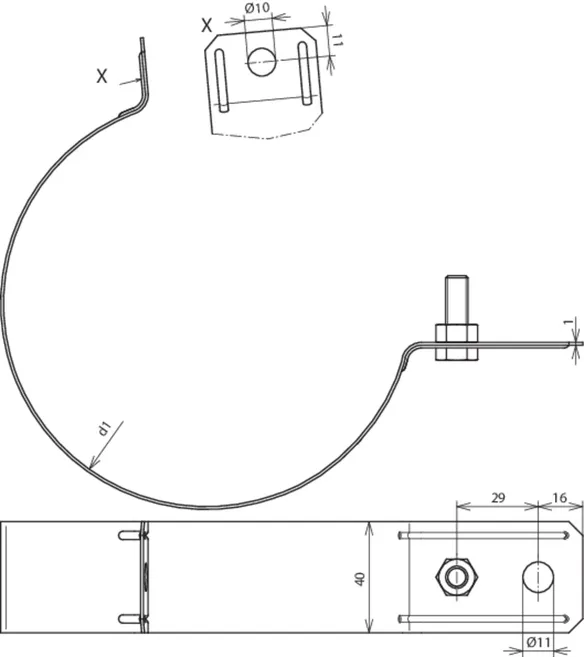

Downpipe clamp, St/tZn, clamping range tube: d 100 mm
Downpipe clamp
For connecting downpipes to the lightning equipotential bonding according to EN 62305
Material: St/tZn
Clamping range pipe Ø: 100 mm
Hole Ø: 11 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS 100 B11 STTZN
Part No.: 420100
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range pipe Ø (d1) 100 mm
Hole Ø 11 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 420100 was added to Notepad.

Go to Notepad

Product 420100 was added to the cart.

Go to Web-Shop

Part No. 420120 RRS 120 B11 STTZN

GTIN 4013364022829, Customs tariff No. (EU): 85359000, Gross weight: 169.60 g, PU: 1.00 pc(s)

Images

Additional information

Downpipe clamp, St/tZn, clamping range tube: d 120 mm
Downpipe clamp
For connecting downpipes to the lightning equipotential bonding according to EN 62305
Material: St/tZn
Clamping range pipe Ø: 120 mm
Hole Ø: 11 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS 120 B11 STTZN
Part No.: 420120
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range pipe Ø (d1) 120 mm
Hole Ø 11 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 420120 was added to Notepad.

Go to Notepad

Product 420120 was added to the cart.

Go to Web-Shop

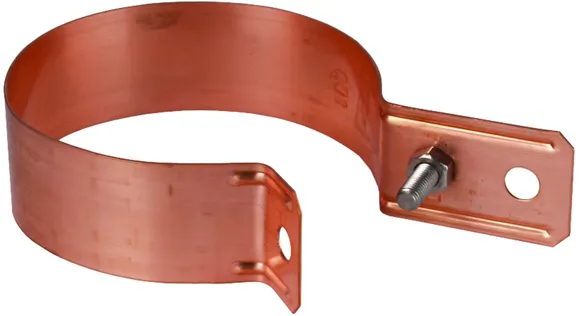

Part No. 420107 RRS 100 B11 CU

GTIN 4013364045828, Customs tariff No. (EU): 85359000, Gross weight: 162.86 g, PU: 1.00 pc(s)

Images

Additional information

Downpipe clamp, Cu, clamping range: d 100 mm
Downpipe clamp
For connecting downpipes to the lightning equipotential bonding according to EN 62305
Material: Cu
Clamping range pipe Ø: 100 mm
Hole Ø: 11 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS 100 B11 CU
Part No.: 420107
or equivalent.

Certificates



Technical data

Material Cu
Clamping range pipe Ø (d1) 100 mm
Hole Ø 11 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 420107 was added to Notepad.

Go to Notepad

Product 420107 was added to the cart.

Go to Web-Shop

Part No. 420127 RRS 120 B11 CU

GTIN 4013364045804, Customs tariff No. (EU): 85359000, Gross weight: 190.96 g, PU: 1.00 pc(s)

Images

Additional information

Downpipe clamp, Cu, clamping range: d 120 mm
Downpipe clamp
For connecting downpipes to the lightning equipotential bonding according to EN 62305
Material: Cu
Clamping range pipe Ø: 120 mm
Hole Ø: 11 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS 120 B11 CU
Part No.: 420127
or equivalent.

Certificates



Technical data

Material Cu
Clamping range pipe Ø (d1) 120 mm
Hole Ø 11 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 420127 was added to Notepad.

Go to Notepad

Product 420127 was added to the cart.

Go to Web-Shop

Bimetallic type

For connecting St conductors with Cu downpipes, with St/tZn clamping piece and intermediate plate (Cupal).

1 Product

Part No. 420207 ZMRRS 100 KB 6.10 CU STTZN

GTIN 4013364045873, Customs tariff No. (EU): 85359000, Gross weight: 219.66 g, PU: 1.00 pc(s)

Images

Additional information

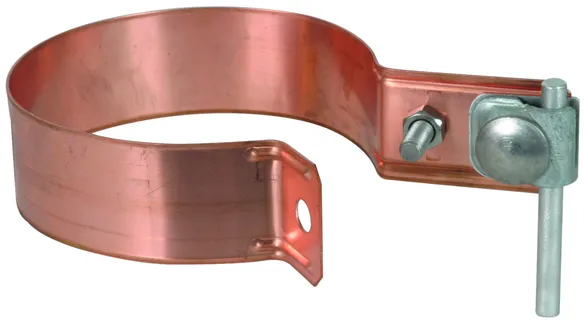

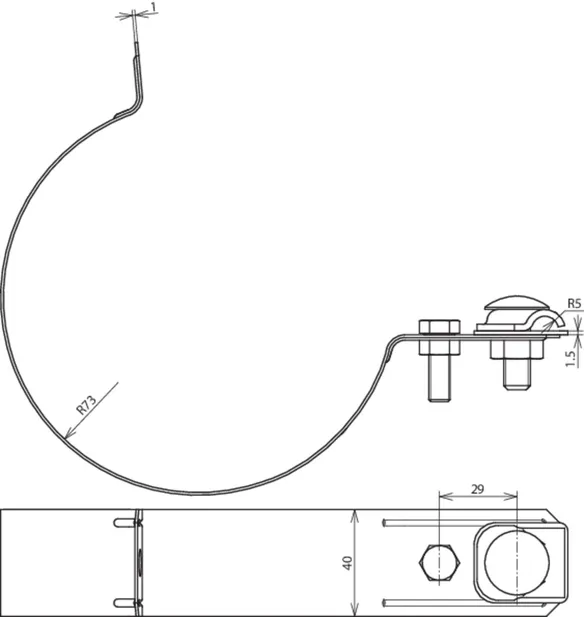

Bimetallic downpipe clamp (Cu/St/tZn)
Bimetal downpipe clamp
For connecting steel conductors to copper
downpipes, with St/tZn clamping piece and
intermediate plate (Cupal)
Material: Cu / St/tZn
Clamping range pipe Ø: 100 mm
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMRRS 100 KB 6.10 CU STTZN
Part No.: 420207
or equivalent.



Technical data

Material Cu / St/tZn
Clamping range pipe Ø (d1) 100 mm
Clamping range Rd 6-10 mm
Standard EN 62561-1

Product 420207 was added to Notepad.

Go to Notepad

Product 420207 was added to the cart.

Go to Web-Shop

Type RV, adjustable

With additional anti-rotation protection of the fixing screw and markings, predetermined bending points as well as pre-punched cutting aids.

8 Products

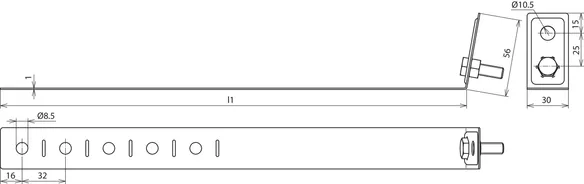

Part No. 423010 RRS V 60.100 B10.5 STTZN

GTIN 4013364054325, Customs tariff No. (EU): 85359000, Gross weight: 117.96 g, PU: 50.00 pc(s)

Images

Additional information

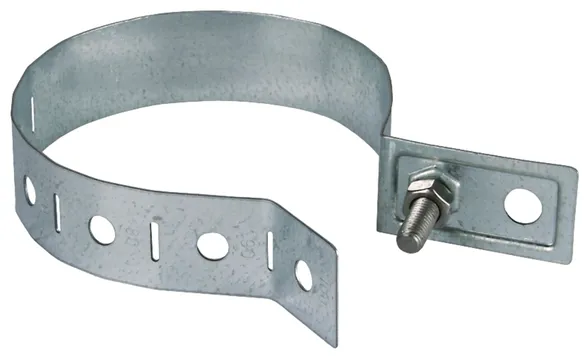

Downpipe clamp of type RV, adjustable, St/tZn
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: St/tZn
Clamping range pipe Ø: 60-100 mm
Length: 337 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.100 B10.5 STTZN
Part No.: 423010
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range pipe Ø (d1) 60-100 mm
Length (l1) 337 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423010 was added to Notepad.

Go to Notepad

Product 423010 was added to the cart.

Go to Web-Shop

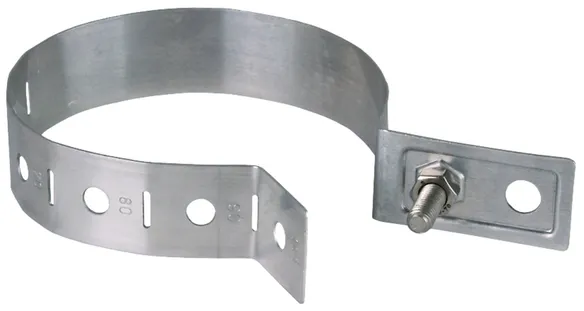

Part No. 423011 RRS V 60.100 B10.5 AL

GTIN 4013364054332, Customs tariff No. (EU): 85359000, Gross weight: 53.46 g, PU: 50.00 pc(s)

Images

Additional information

Downpipe clamp of type RV, adjustable, Al
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: Al
Clamping range pipe Ø: 60-100 mm
Length: 337 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.100 B10.5 AL
Part No.: 423011
or equivalent.

Certificates



Technical data

Material Al
Clamping range pipe Ø (d1) 60-100 mm
Length (l1) 337 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423011 was added to Notepad.

Go to Notepad

Product 423011 was added to the cart.

Go to Web-Shop

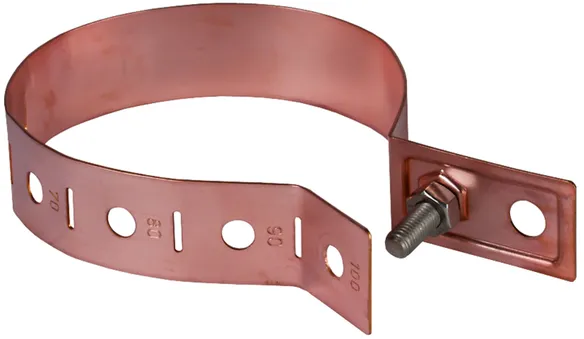

Part No. 423017 RRS V 60.100 B10.5 CU

GTIN 4013364054349, Customs tariff No. (EU): 85359000, Gross weight: 123.56 g, PU: 1.00 pc(s)

Images

Additional information

Downpipe clamp of type RV, adjustable, Cu
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: Cu
Clamping range pipe Ø: 60-100 mm
Length: 337 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.100 B10.5 CU
Part No.: 423017
or equivalent.

Certificates



Technical data

Material Cu
Clamping range pipe Ø (d1) 60-100 mm
Length (l1) 337 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423017 was added to Notepad.

Go to Notepad

Product 423017 was added to the cart.

Go to Web-Shop

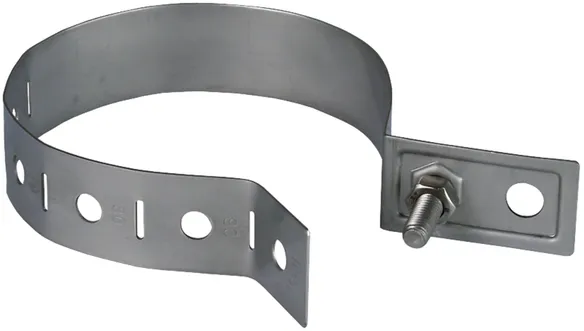

Part No. 423019 RRS V 60.100 B10.5 V2A

GTIN 4013364054356, Customs tariff No. (EU): 85359000, Gross weight: 114.26 g, PU: 50.00 pc(s)

Images

Additional information

Downpipe clamp of type RV, adjustable, StSt
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: StSt
Clamping range pipe Ø: 60-100 mm
Length: 337 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.100 B10.5 V2A
Part No.: 423019
or equivalent.

Certificates



Technical data

Material StSt
Clamping range pipe Ø (d1) 60-100 mm
Length (l1) 337 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423019 was added to Notepad.

Go to Notepad

Product 423019 was added to the cart.

Go to Web-Shop

Part No. 423020 RRS V 60.150 B10.5 STTZN

GTIN 4013364054288, Customs tariff No. (EU): 85359000, Gross weight: 144.18 g, PU: 50.00 pc(s)

Images

Additional information

Downpipe clamp of type RV, adjustable, St/tZn
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: St/tZn
Clamping range pipe Ø: 60-150 mm
Length: 494 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.150 B10.5 STTZN
Part No.: 423020
or equivalent.

Certificates



Technical data

Material St/tZn
Clamping range pipe Ø (d1) 60-150 mm
Length (l1) 494 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423020 was added to Notepad.

Go to Notepad

Product 423020 was added to the cart.

Go to Web-Shop

Part No. 423021 RRS V 60.150 B10.5 AL

GTIN 4013364054295, Customs tariff No. (EU): 85359000, Gross weight: 67.58 g, PU: 50.00 pc(s)

Images

Additional information

Downpipe clamp of type RV, adjustable, Al
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: Al
Clamping range pipe Ø: 60-150 mm
Length: 494 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.150 B10.5 AL
Part No.: 423021
or equivalent.

Certificates



Technical data

Material Al
Clamping range pipe Ø (d1) 60-150 mm
Length (l1) 494 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423021 was added to Notepad.

Go to Notepad

Product 423021 was added to the cart.

Go to Web-Shop

Part No. 423027 RRS V 60.150 B10.5 CU

GTIN 4013364054301, Customs tariff No. (EU): 85359000, Gross weight: 162.48 g, PU: 50.00 pc(s)

Images

Additional information

Downpipe clamp of type RV, adjustable, Cu
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: Cu
Clamping range pipe Ø: 60-150 mm
Length: 494 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.150 B10.5 CU
Part No.: 423027
or equivalent.

Certificates



Technical data

Material Cu
Clamping range pipe Ø (d1) 60-150 mm
Length (l1) 494 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423027 was added to Notepad.

Go to Notepad

Product 423027 was added to the cart.

Go to Web-Shop

Part No. 423029 RRS V 60.150 B10.5 V2A

GTIN 4013364054318, Customs tariff No. (EU): 85359000, Gross weight: 157.28 g, PU: 50.00 pc(s)

Images

Additional information

Downpipe clamp of type RV, adjustable, StSt
Downpipe clamp
For connecting downpipes to the lightning equipotential
bonding according to EN 62305
Material: StSt
Clamping range pipe Ø: 60-150 mm
Length: 494 mm
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: RRS V 60.150 B10.5 V2A
Part No.: 423029
or equivalent.

Certificates



Technical data

Material StSt
Clamping range pipe Ø (d1) 60-150 mm
Length (l1) 494 mm
Hole Ø 10.5 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

Product 423029 was added to Notepad.

Go to Notepad

Product 423029 was added to the cart.

Go to Web-Shop
