Discharge and Equipotential Bonding Devices

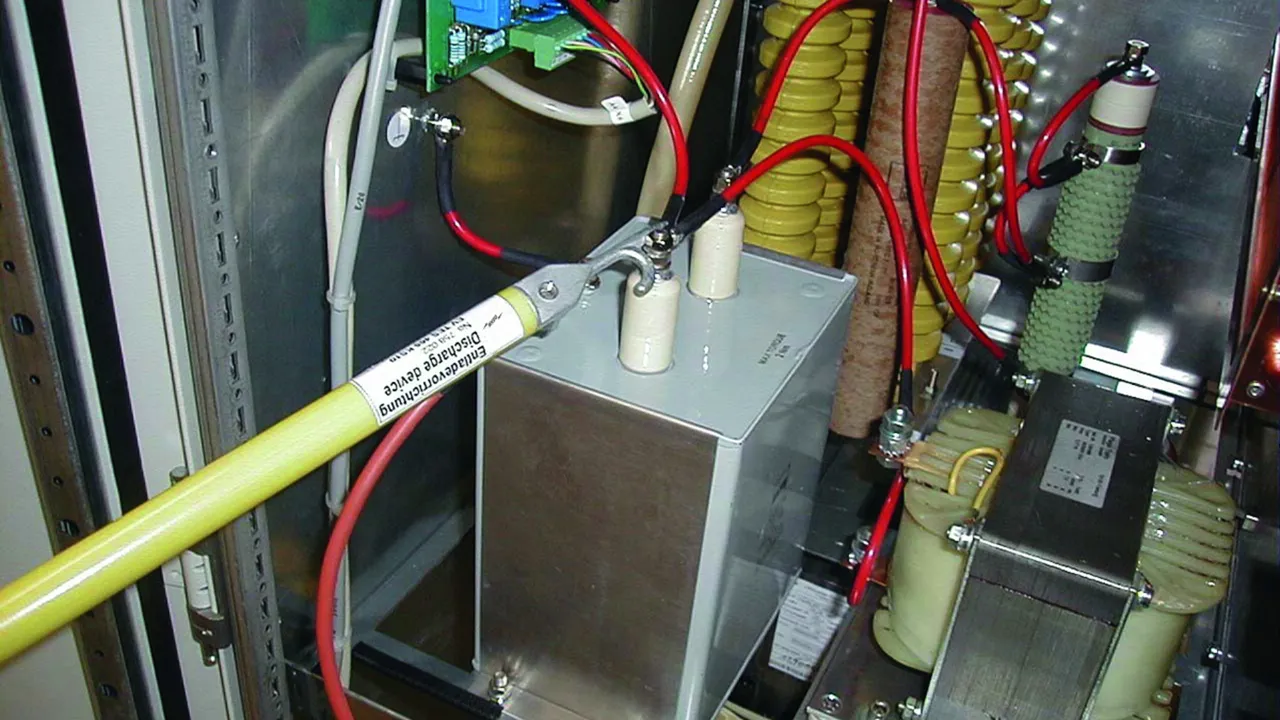

  • For discharging static charges
  • Different contact electrodes
  • Coupling electrode, especially for round conductors (Ø12 ... 26.5 mm) of electrostatic precipitator systems
  • Waterproof, plastic-sheathed cable entries, with additional anti-kink protection

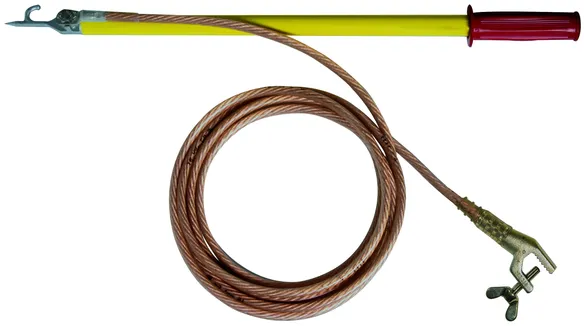

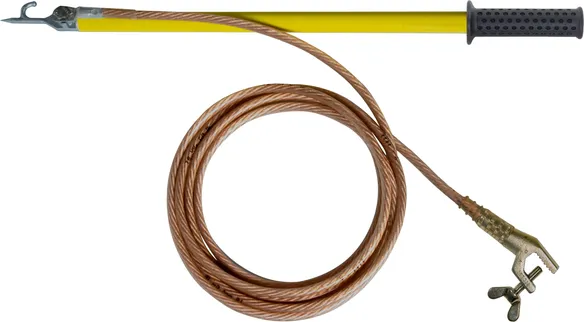

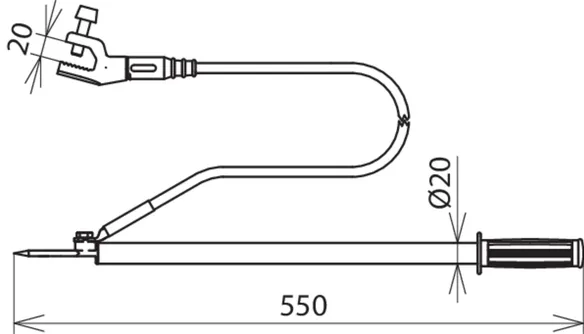

Discharge Device with Handle and Earth Clamp with Wing Bolt

1 Product

Part No. 758020 EV TES 465 EK

GTIN 4013364098992, Customs tariff No. (EU): 85369095, Gross weight: 1.44 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 465 mm
Total length (lG ) 550 mm
Clamping range Up to 20 mm
Material (contact and coupling electrode) Zamak

Product 758020 was added to Notepad.

Go to Notepad

Product 758020 was added to the cart.

Go to Web-Shop

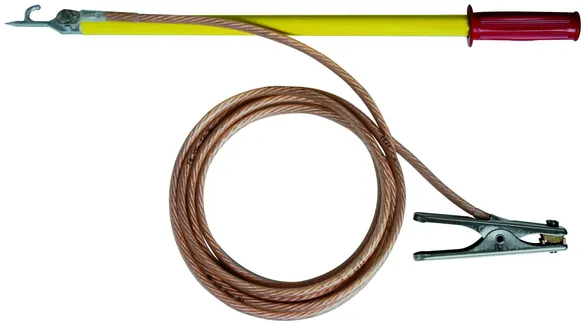

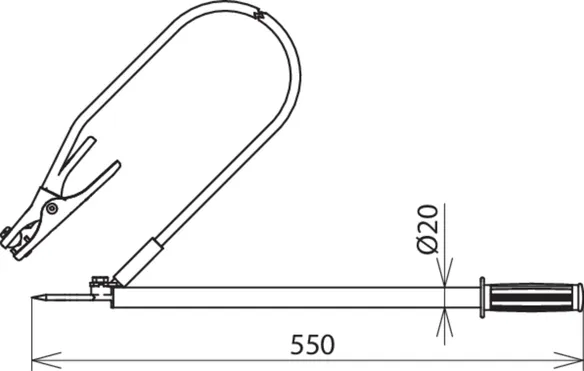

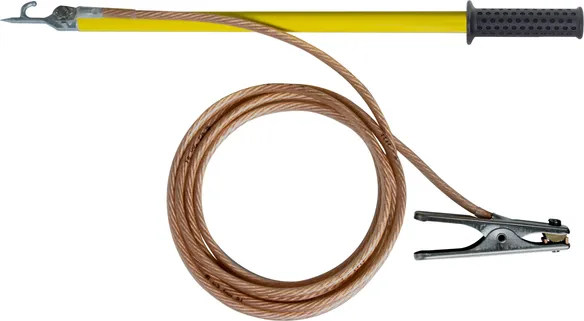

Discharge Device with Handle and Spring-loaded Earth Pliers

1 Product

Part No. 758021 EV TES 465 EZ

GTIN 4013364099005, Customs tariff No. (EU): 85369095, Gross weight: 1.20 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 465 mm
Total length (lG ) 550 mm
Clamping range Rd / Fl up to Ø16 / up to 13 mm
Material (contact and coupling electrode) Zamak

Product 758021 was added to Notepad.

Go to Notepad

Product 758021 was added to the cart.

Go to Web-Shop

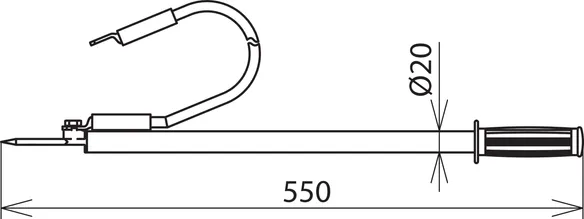

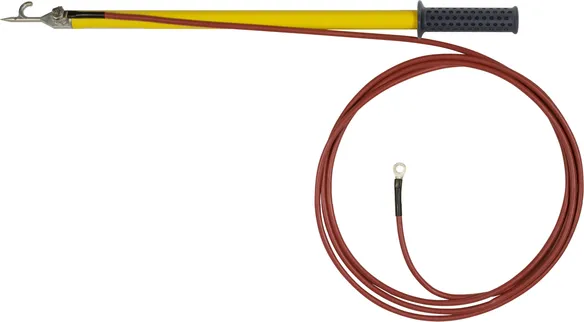

Discharge Device with Handle and Cable Lug at the Earth Cable End

Hole (Ø8.4 mm) and silicone cable

1 Product

Part No. 758022 EV TES 465 KS10

GTIN 4013364099012, Customs tariff No. (EU): 85369095, Gross weight: 750.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 10 mm2
Cable sheath Red silicone cable
Tube length 465 mm
Total length (lG ) 550 mm
Material (contact and coupling electrode) Zamak

Product 758022 was added to Notepad.

Go to Notepad

Product 758022 was added to the cart.

Go to Web-Shop

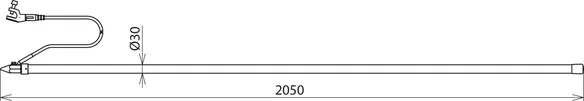

Discharge Device with Earth Clamp with Wing Bolt

1 Product

Part No. 758001 EV TS 2000 EK

GTIN 4013364004030, Customs tariff No. (EU): 85369095, Gross weight: 3.22 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 2000 mm
Total length (lG ) 2050 mm
Clamping range Up to 20 mm
Material (contact electrode) Cu alloy/gal Sn

Product 758001 was added to Notepad.

Go to Notepad

Product 758001 was added to the cart.

Go to Web-Shop

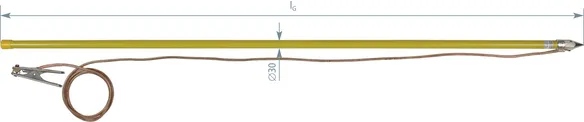

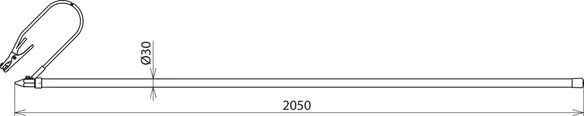

Discharge Device with Spring-loaded Earth Pliers

1 Product

Part No. 758003 EV TS 2000 EZ

GTIN 4013364004047, Customs tariff No. (EU): 85369095, Gross weight: 2.95 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 2000 mm
Total length (lG ) 2050 mm
Clamping range Up to 18 mm
Material (contact electrode) Cu alloy/gal Sn
*) Check according to own data

Product 758003 was added to Notepad.

Go to Notepad

Product 758003 was added to the cart.

Go to Web-Shop

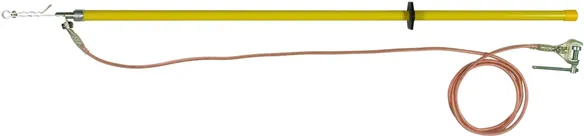

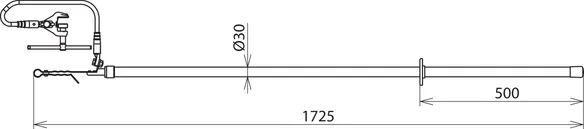

Earthing Device with Earth Clamp with Tommy Bar

For round conductors (Ø12 ... 26.5 mm) of electrostatic precipitator systems

1 Product

Part No. 758015 EV EH 1725 EK

GTIN 4013364041608, Customs tariff No. (EU): 85369095, Gross weight: 3.62 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 25 mm2
Cable sheath Transparent
Tube length 1500 mm
Total length (lG ) 1725 mm
Clamping range Up to 30 mm
Material (coupling electrode) Bronze/gal Sn

Product 758015 was added to Notepad.

Go to Notepad

Product 758015 was added to the cart.

Go to Web-Shop

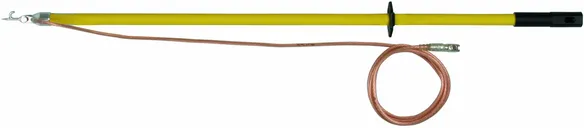

Discharge Device with Contact and Coupling Electrode and Cable Lug at the Earth Cable End

PK1 anti-rotation crimped cable lug (hole Ø12.5 mm).

1 Product

Part No. 758025 EV TES STK 1500 KS

GTIN 4013364127838, Customs tariff No. (EU): 85369095, Gross weight: 2.29 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 1310 mm
Total length (lG ) 1500 mm
Material (contact and coupling electrode) Zamak

Product 758025 was added to Notepad.

Go to Notepad

Product 758025 was added to the cart.

Go to Web-Shop

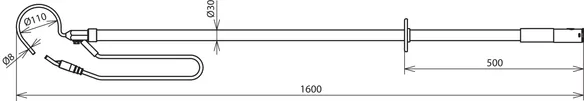

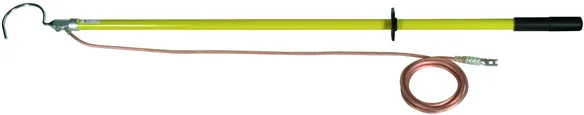

Discharge Device with Clamp and Cable Lug at the Earth Cable End

PK1 anti-rotation crimped cable lug (hole Ø12.5 mm).

1 Product

Part No. 758028 EV EHB 1600 SN7114

GTIN 4013364132450, Customs tariff No. (EU): 85369095, Gross weight: 5.16 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 1310 mm
Total length (lG ) 1600 mm
Material (bracket) StSt

Product 758028 was added to Notepad.

Go to Notepad

Product 758028 was added to the cart.

Go to Web-Shop

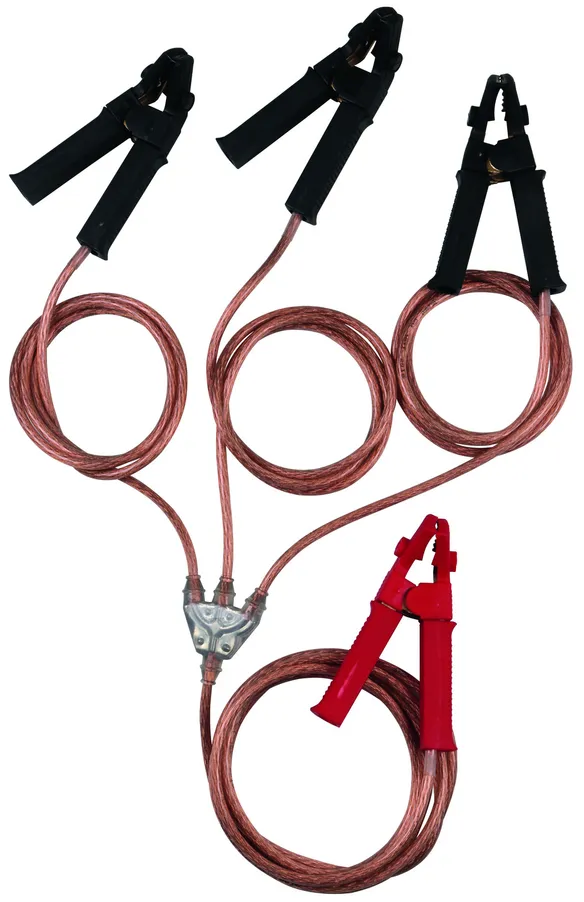

Equipotential Bonding Device with Insulated Earth Clamps

1 Product

Part No. 758099 PAV 3+1 16 ZAK

GTIN 4013364287587, Customs tariff No. (EU): 85369095, Gross weight: 3.21 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length (A / B / C) 1750 mm
Cable length (D) 3200 mm
Cable cross-section 16 mm2
Cable sheath transparent
Clamping range 5-25 mm

Product 758099 was added to Notepad.

Go to Notepad

Product 758099 was added to the cart.

Go to Web-Shop

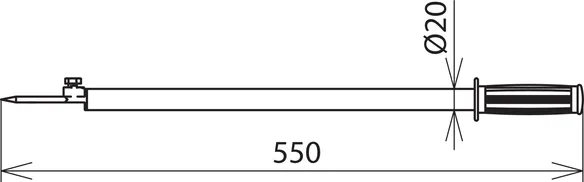

Discharge Device with Handle, without Earth Cable

1 Product

Part No. 758036 EV TES 465 SN7215

GTIN 4013364133884, Customs tariff No. (EU): 85369095, Gross weight: 1.35 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Tube length 465 mm
Total length (lG ) 550 mm
Screw M8 x 20 mm
Material (contact and coupling electrode) Zamak

Product 758036 was added to Notepad.

Go to Notepad

Product 758036 was added to the cart.

Go to Web-Shop

Discharge Device with Contact Electrode without Earth Cable

1 Product

Part No. 758075 EV TS STK 1470

GTIN 4013364247789, Customs tariff No. (EU): 85369095, Gross weight: 1.75 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Tube length 1310 mm
Total length (lG ) 1470 mm
Screw M8 x 20 mm
Material (contact electrode) Cu alloy/gal Sn

Product 758075 was added to Notepad.

Go to Notepad

Product 758075 was added to the cart.

Go to Web-Shop

Discharge Device with Contact and Coupling Electrode without Earth Cable

1 Product

Part No. 758085 EV TES STK 1500

GTIN 4013364247819, Customs tariff No. (EU): 85369095, Gross weight: 1.42 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Tube length 1310 mm
Total length (lG ) 1500 mm
Screw M8 x 20 mm
Material (contact and coupling electrode) Zamak

Product 758085 was added to Notepad.

Go to Notepad

Product 758085 was added to the cart.

Go to Web-Shop

Discharge Device with Hook without Earth Cable

1 Product

Part No. 758095 EV EHB STK 1600

GTIN 4013364247826, Customs tariff No. (EU): 85369095, Gross weight: 2.32 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Tube length 1310 mm
Total length (lG ) 1600 mm
Screw M8 x 20 mm
Material (bracket) StSt

Product 758095 was added to Notepad.

Go to Notepad

Product 758095 was added to the cart.

Go to Web-Shop
