Tubular Earth Rods

Light design, for implementing earth-termination systems for down conductors.

Details

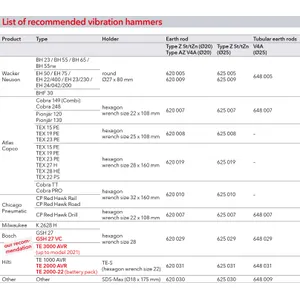

Hammer inserts for earth rods and tubular earth electrodes

lorem ipsum — Hammer inserts for earth rods and tubular earth electrodes

Type StSt (V4A)

1 Product

Part No. 649150 RE 25 1500 V4A

GTIN 4013364126350, Customs tariff No. (EU): 85389099, Gross weight: 1.71 kg, PU: 6.00 pc(s)

Images

Open PDF

Additional information

CAD files

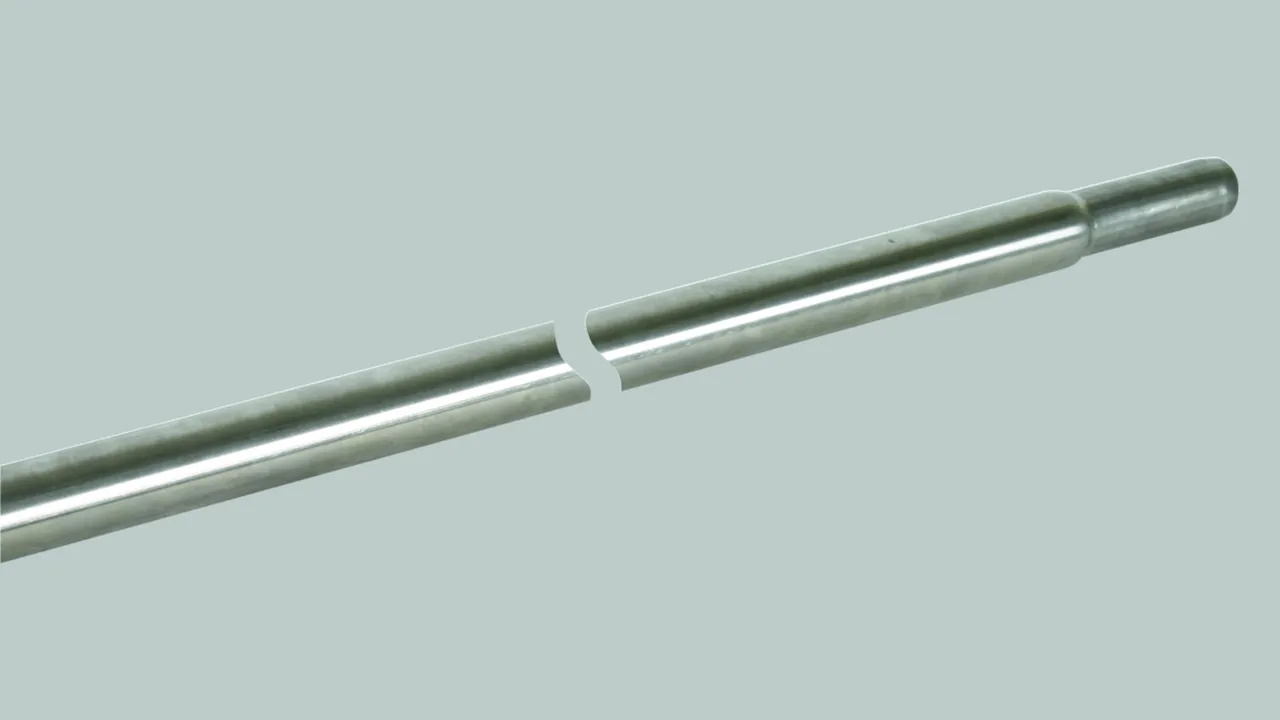

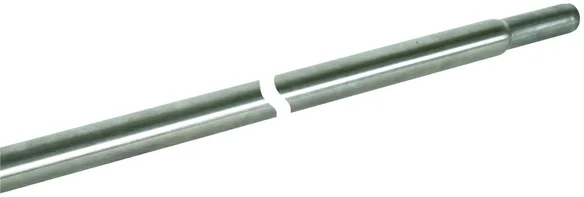

Tubular earth electrode, StSt (V4A), rod length: 1500 mm
Tubular earth electrode
For installation of earth-termination
systems for down conductors
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
Rod length : 1500 mm
Diameter Ø: 25 mm
Standard: EN 62561-2

Brand: DEHN
Type: RE 25 1500 V4A
Part No.: 649150
or equivalent.

Certificates

Technical data

Material	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Rod length	1500 mm
Diameter Ø	25 mm
Standard	EN 62561-2

Material	StSt (V4A)
Material No.	1.4571 / 1.4404 / 1.4401
Rod length	1500 mm
Diameter Ø	25 mm
Standard	EN 62561-2
Wall thickness	2 mm
Cross section	145 mm²
Weight	1.7 kg
Tenon	21 mm
Tensile strength	500-700 N/mm²
Static tensile strength (vertical tension)	approx. 40000 N
Conductivity	≥ 1.25 m / Ohm mm²
Specific resistance	≤ 0.80 Ohm mm²/ m
