Seam Clamps

For connecting conductors with seams of the same or of different materials.

With clamping piece

Longitudinal or cross conductor routing.

4 Products

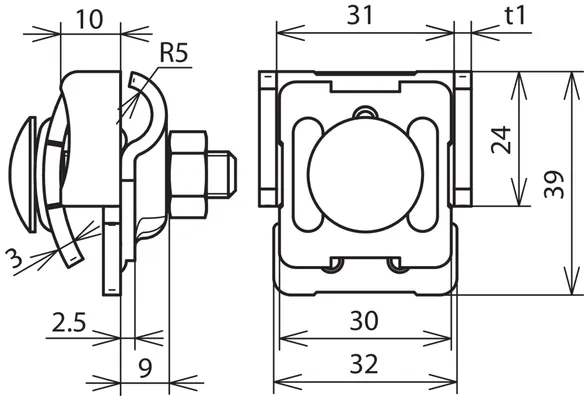

Part No. 365030 FK KB 6.10 KBF0.7 8 STTZN

GTIN 4013364046894, Customs tariff No. (EU): 85359000, Gross weight: 102.00 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with clamping piece, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 STTZN
Part No.: 365030
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365030 was added to Notepad.

Go to Notepad

Product 365030 was added to the cart.

Go to Web-Shop

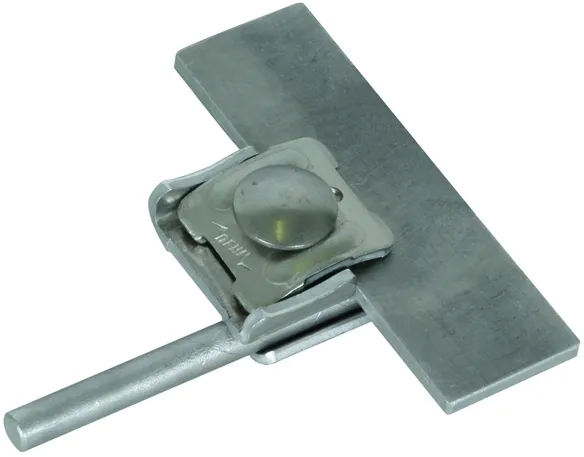

Part No. 365031 FK KB 6.10 KBF0.7 8 AL

GTIN 4013364055438, Customs tariff No. (EU): 85359000, Gross weight: 50.60 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with clamping piece, Al
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: Al
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 AL
Part No.: 365031
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp Al
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365031 was added to Notepad.

Go to Notepad

Product 365031 was added to the cart.

Go to Web-Shop

Part No. 365037 FK KB 6.10 KBF0.7 8 CU

GTIN 4013364046900, Customs tariff No. (EU): 85359000, Gross weight: 105.00 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with clamping piece, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 CU
Part No.: 365037
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp Cu
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365037 was added to Notepad.

Go to Notepad

Product 365037 was added to the cart.

Go to Web-Shop

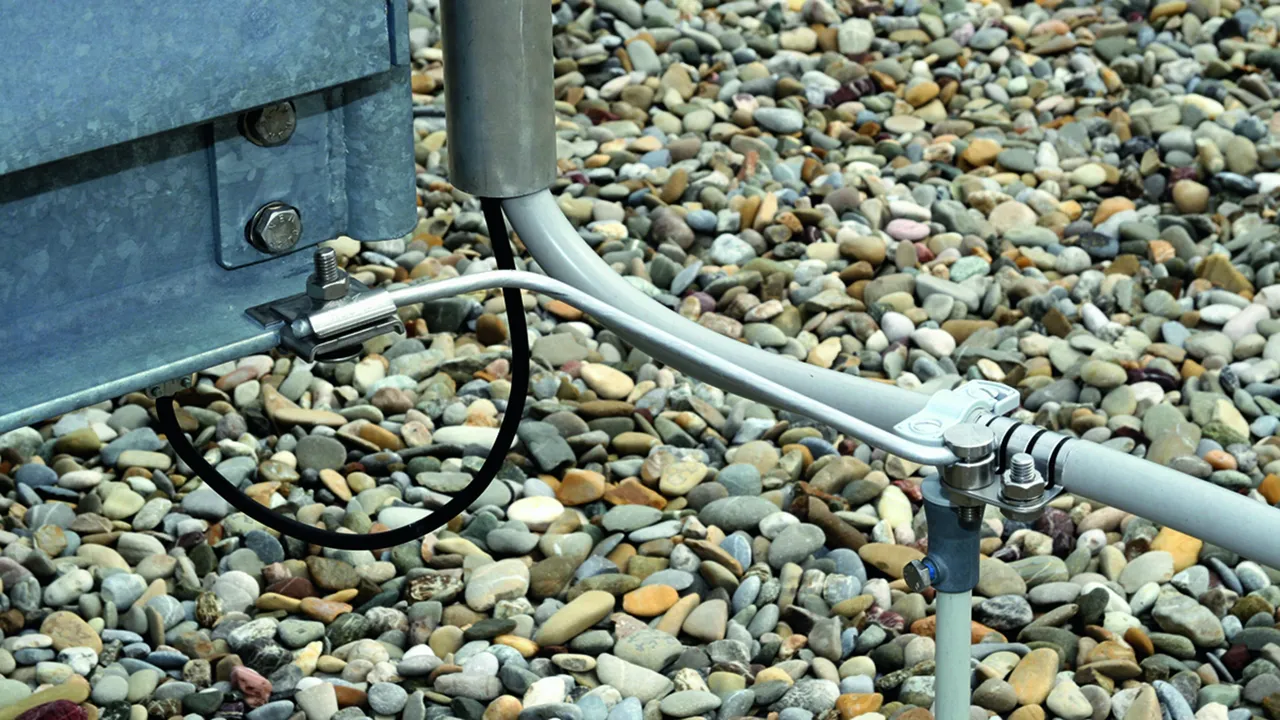

Part No. 365039 FK KB 6.10 KBF0.7 8 V2A

GTIN 4013364057777, Customs tariff No. (EU): 85359000, Gross weight: 90.90 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with clamping piece, StSt
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: StSt
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 V2A
Part No.: 365039
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365039 was added to Notepad.

Go to Notepad

Product 365039 was added to the cart.

Go to Web-Shop

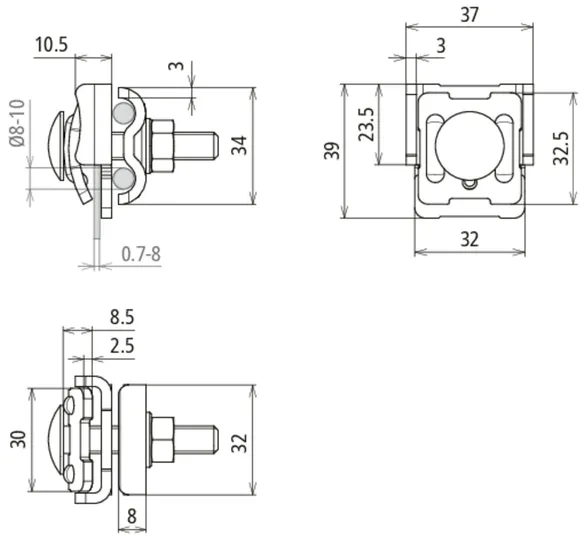

With double clamp

Longitudinal or cross conductor routing.

3 Products

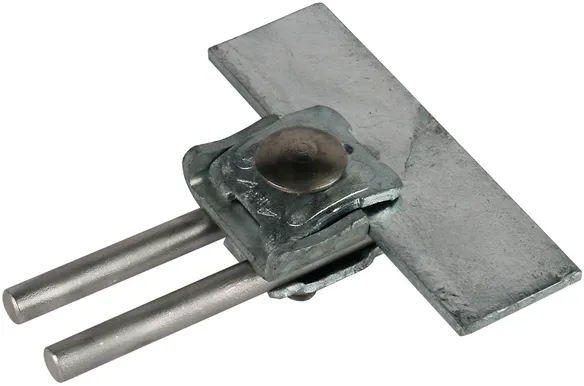

Part No. 365010 FK DUL 8.10 KBF0.7 8 STTZN

GTIN 4013364096318, Customs tariff No. (EU): 85359000, Gross weight: 109.00 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with double clamp, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK DUL 8.10 KBF0.7 8 STTZN
Part No.: 365010
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp St/tZn
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365010 was added to Notepad.

Go to Notepad

Product 365010 was added to the cart.

Go to Web-Shop

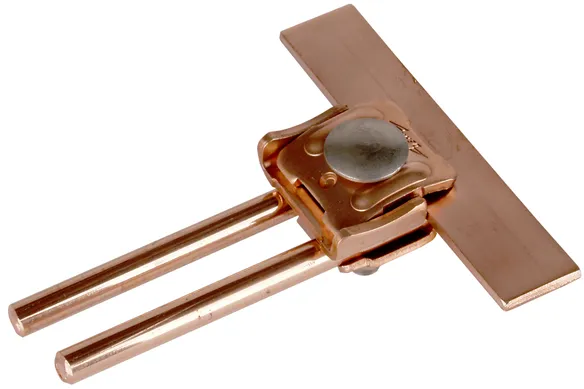

Part No. 365017 FK DUL 8.10 KBF0.7 8 CU

GTIN 4013364096349, Customs tariff No. (EU): 85359000, Gross weight: 107.20 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with double clamp, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN62561-1

Brand: DEHN
Type: FK DUL 8.10 KBF0.7 8 CU
Part No.: 365017
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp Cu
Clamping range Rd 8-10 mm
Standard EN62561-1
*) For exact assignment see test certificate.

Product 365017 was added to Notepad.

Go to Notepad

Product 365017 was added to the cart.

Go to Web-Shop

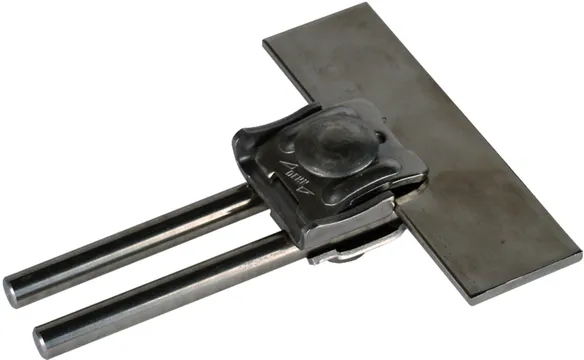

Part No. 365019 FK DUL 6.10 KBF0.7 8 V2A

GTIN 4013364096295, Customs tariff No. (EU): 85359000, Gross weight: 85.00 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with double clamp, StSt
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: StSt
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK DUL 6.10 KBF0.7 8 V2A
Part No.: 365019
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365019 was added to Notepad.

Go to Notepad

Product 365019 was added to the cart.

Go to Web-Shop

With two-screw clamp

Longitudinal or cross conductor routing.

2 Products

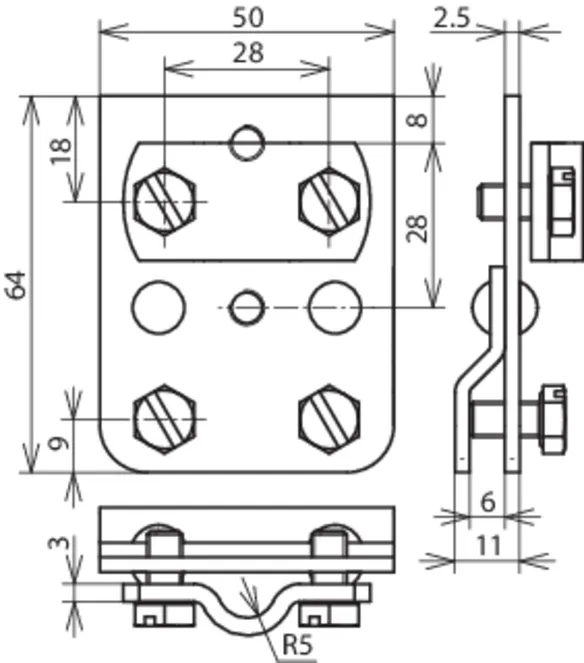

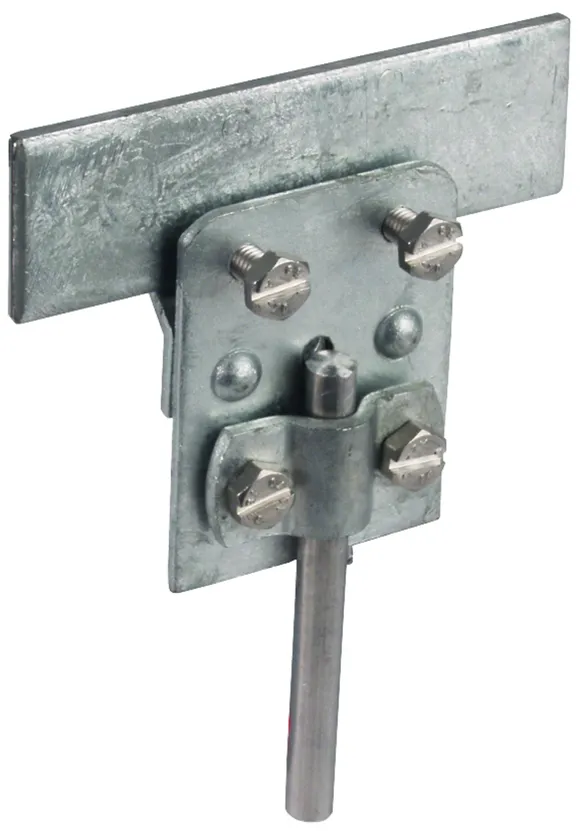

Part No. 251002 FK ZS 7.10 KF0.7 8 STTZN

GTIN 4013364095779, Customs tariff No. (EU): 85359000, Gross weight: 137.40 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with two-screw clamp, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-5 mm
Material of clamp: St/tZn
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KF0.7 8 STTZN
Part No.: 251002
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-5 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 251002 was added to Notepad.

Go to Notepad

Product 251002 was added to the cart.

Go to Web-Shop

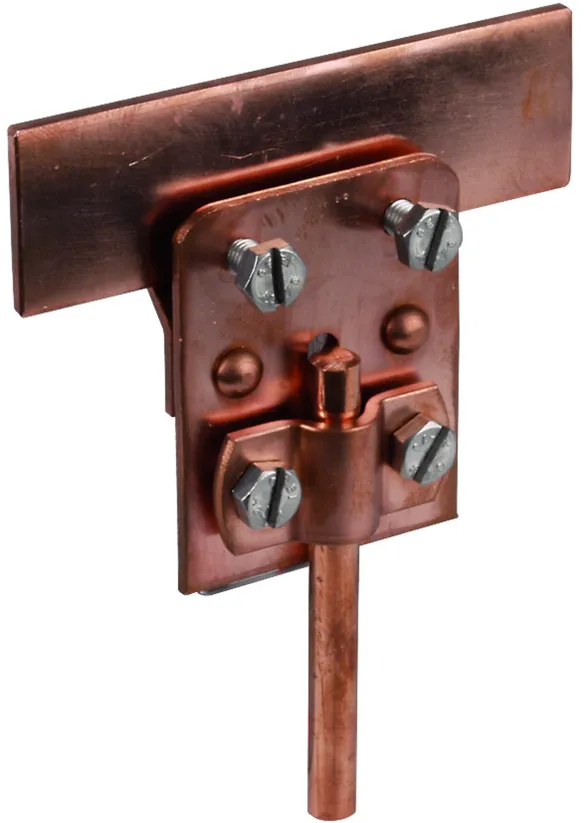

Part No. 251027 FK ZS 7.10 KF0.7 8 CU

GTIN 4013364096394, Customs tariff No. (EU): 85359000, Gross weight: 150.40 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with two-screw clamp, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-5 mm
Material of clamp: Cu
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KF0.7 8 CU
Part No.: 251027
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-5 mm
Material of clamp Cu
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 251027 was added to Notepad.

Go to Notepad

Product 251027 was added to the cart.

Go to Web-Shop

With two-screw clamp, e.g. for standing seams

Longitudinal or cross conductor routing.

2 Products

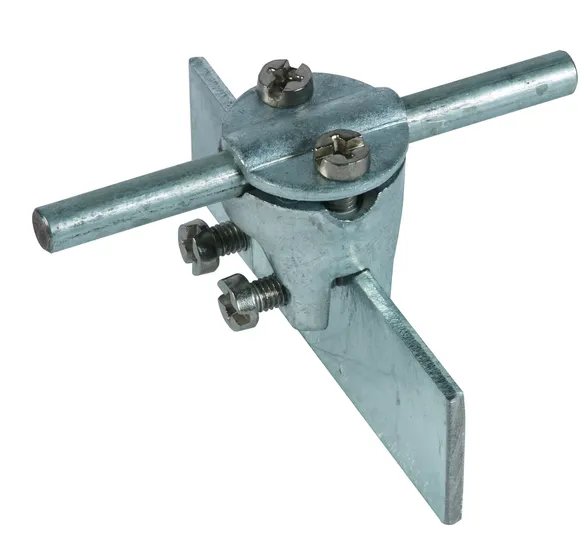

Part No. 365000 FK ZS 7.10 KBF0.7 6 ZG

GTIN 4013364024731, Customs tariff No. (EU): 85359000, Gross weight: 111.00 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with two-screw clamp, ZDC
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-6 mm
Material of clamp: ZDC
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 6 ZG
Part No.: 365000
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-6 mm
Material of clamp ZDC
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365000 was added to Notepad.

Go to Notepad

Product 365000 was added to the cart.

Go to Web-Shop

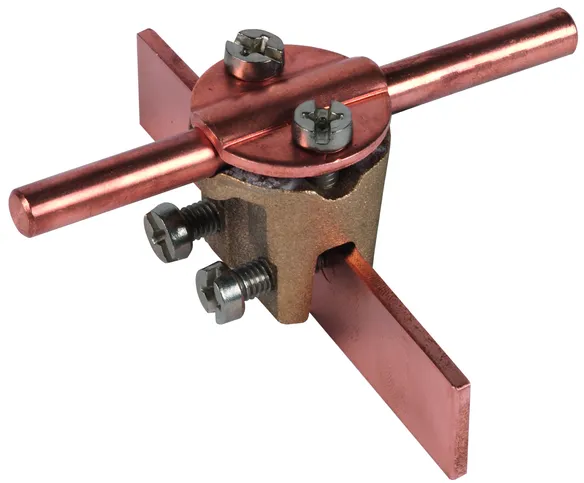

Part No. 365007 FK ZS 7.10 KBF0.7 6 RG

GTIN 4013364024748, Customs tariff No. (EU): 85359000, Gross weight: 133.40 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with two-screw clamp, RCB
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-6 mm
Material of clamp: Gunmetal
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 6 RG
Part No.: 365007
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-6 mm
Material of clamp Gunmetal
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365007 was added to Notepad.

Go to Notepad

Product 365007 was added to the cart.

Go to Web-Shop

With clamping piece, for hooking under seams

Which are close to a roof or wall surface.
Longitudinal or cross conductor routing.

2 Products

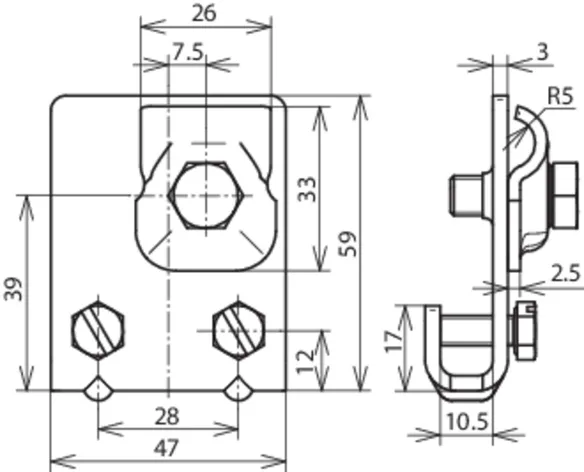

Part No. 365020 FK KB 6.10 KBF0.7 10 STTZN

GTIN 4013364035126, Customs tariff No. (EU): 85359000, Gross weight: 122.40 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with clamping piece for hooking under seams, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 10 STTZN
Part No.: 365020
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-10 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365020 was added to Notepad.

Go to Notepad

Product 365020 was added to the cart.

Go to Web-Shop

Part No. 365027 FK KB 6.10 KBF0.7 10 CU

GTIN 4013364035133, Customs tariff No. (EU): 85359000, Gross weight: 147.90 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with clamping piece for hooking under seams, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 10 CU
Part No.: 365027
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-10 mm
Material of clamp Cu
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365027 was added to Notepad.

Go to Notepad

Product 365027 was added to the cart.

Go to Web-Shop

With two-screw clamp, for hooking under seams

Which are close to a roof or wall surface.
Longitudinal or cross conductor routing.

2 Products

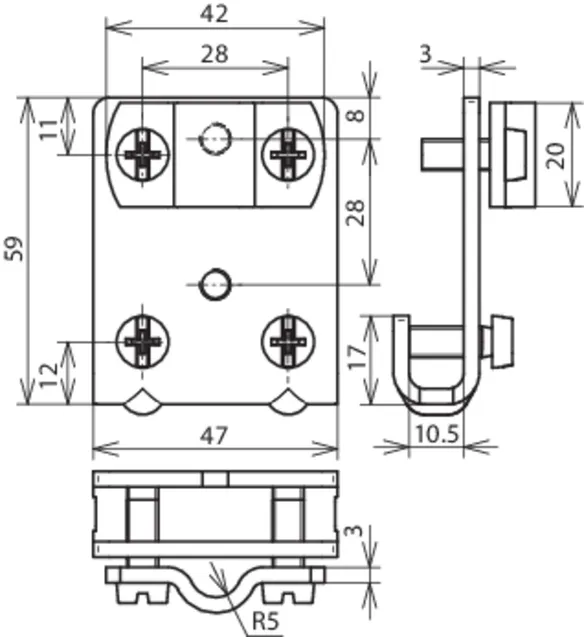

Part No. 365040 FK ZS 7.10 KBF0.7 10 STTZN

GTIN 4013364069053, Customs tariff No. (EU): 85359000, Gross weight: 126.40 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with two-screw clamp under hooking at seams, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 10 STTZN
Part No.: 365040
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-10 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365040 was added to Notepad.

Go to Notepad

Product 365040 was added to the cart.

Go to Web-Shop

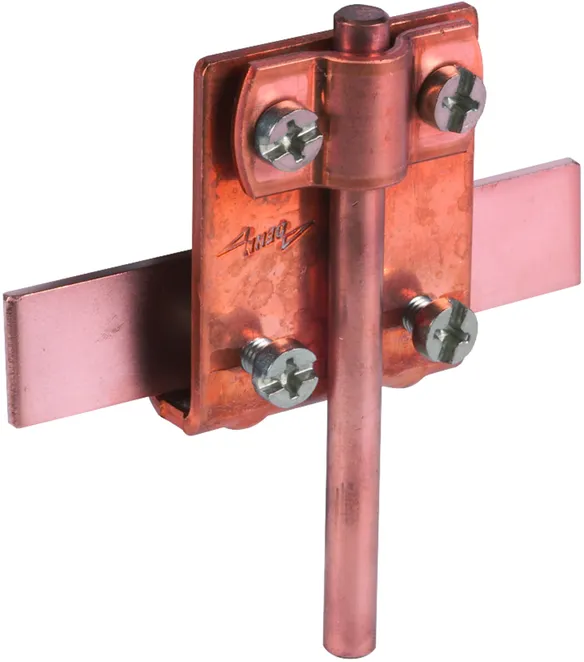

Part No. 365047 FK ZS 7.10 KBF0.7 10 CU

GTIN 4013364069046, Customs tariff No. (EU): 85359000, Gross weight: 141.40 g, PU: 50.00 pc(s)

Images

Additional information

Seam clamp with two-screw clamp under hooking at seams, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 10 CU
Part No.: 365047
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-10 mm
Material of clamp Cu
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365047 was added to Notepad.

Go to Notepad

Product 365047 was added to the cart.

Go to Web-Shop

Bimetallic, for Cu seams, with intermediate plate (Cupal)

1 Product

Part No. 365117 ZMFK KB 6.10 KBF0.7 8 STTZN CU

GTIN 4013364035331, Customs tariff No. (EU): 85359000, Gross weight: 116.60 g, PU: 50.00 pc(s)

Images

Additional information

Bimetallic seam clamps with intermediate plate (St/tZn/Cu)
Bimetallic seam clamp
For connecting conductors to seams made
of different materials
Clamping range of seam: 0.7-8 mm
Material of clamp: St/tZn / Cu
Standard: EN 62561-1

Brand: DEHN
Type: ZMFK KB 6.10 KBF0.7 8 STTZN CU
Part No.: 365117
or equivalent.

Certificates



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp St/tZn / Cu
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 365117 was added to Notepad.

Go to Notepad

Product 365117 was added to the cart.

Go to Web-Shop

Bimetallic, for St/tZn seams, with intermediate plate (Cupal)

1 Product

Part No. 365127 ZMFK KB 6.10 KBF0.7 8 CU STTZN

GTIN 4013364080317, Customs tariff No. (EU): 85359000, Gross weight: 106.00 g, PU: 1.00 pc(s)

Images

Additional information

Bimetallic seam clamps with intermediate plate (Cu/St/tZn)
Bimetallic seam clamp
For connecting conductors to seams made
of different materials
Clamping range of seam: 0.7-8 mm
Material of clamp: Cu / St/tZn

Brand: DEHN
Type: ZMFK KB 6.10 KBF0.7 8 CU STTZN
Part No.: 365127
or equivalent.



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp Cu / St/tZn
Clamping range Rd 6-10 mm
*) For exact assignment see test certificate.

Product 365127 was added to Notepad.

Go to Notepad

Product 365127 was added to the cart.

Go to Web-Shop
back to top
