Accessories for HVI power Conductor / HVI power long Conductor

1 Product

Part No. 102075 BES 8.5KG KT10 16 D240 SET

GTIN 4013364094215, Customs tariff No. (EU): 68109100, Gross weight: 8.46 kg, PU: 120.00 pc(s)

Images

Additional information

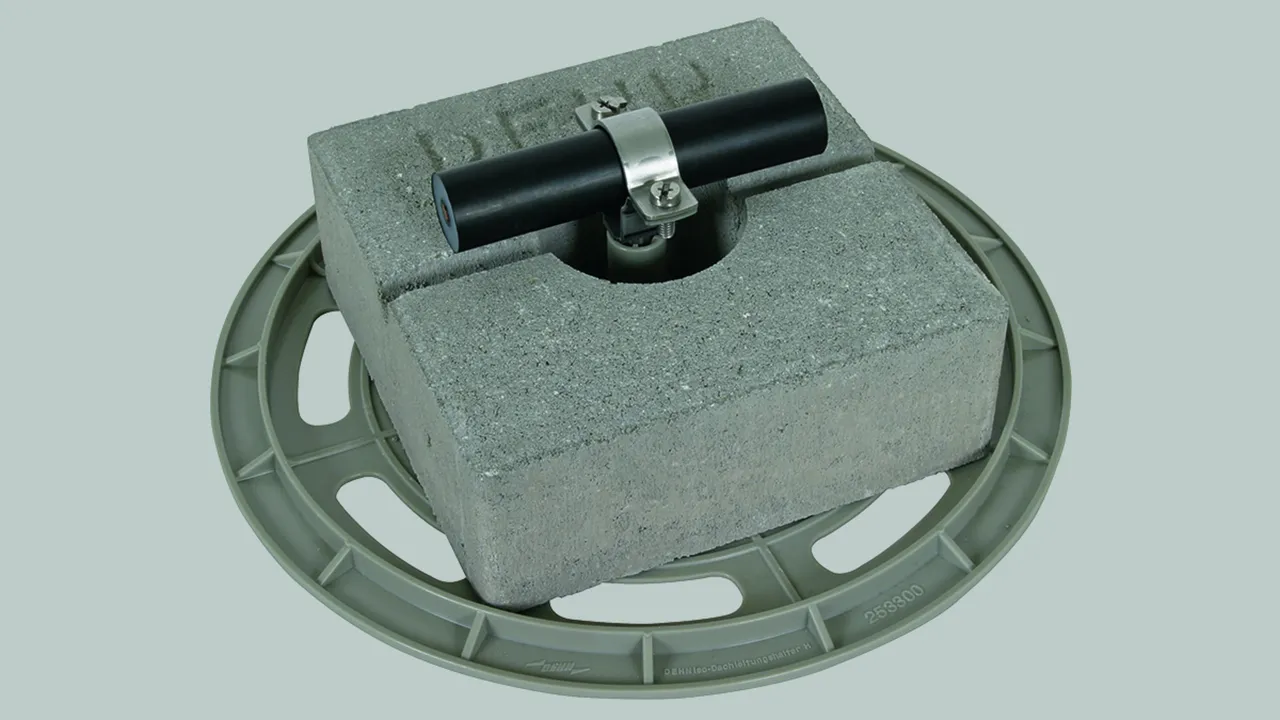

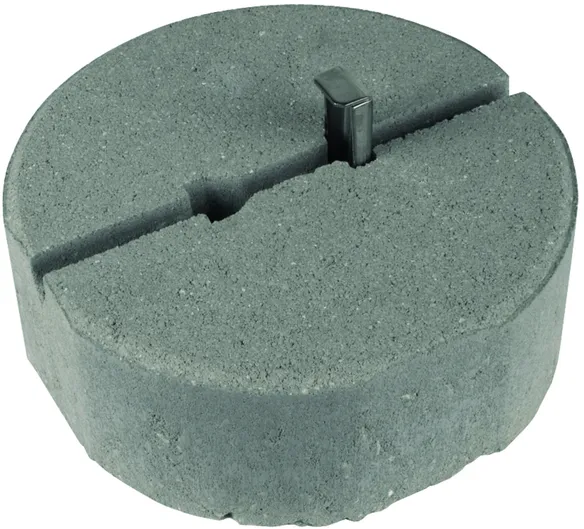

Concrete base with fixing wedge
Concrete base with fixing wedge
Total weight: 17 kg
for protecting small roof-mounted structures
on flat roofs
with air-termination tip of 1m length e.g. Part No. 101 001,
or for installing spacers from the DEHNiso spacer programme
for, e.g. isolated ring conductors


Brand: DEHN
Type: BES 8.5KG KT10 16 D240 SET
Part No.: 102075
or equivalent.

Certificates

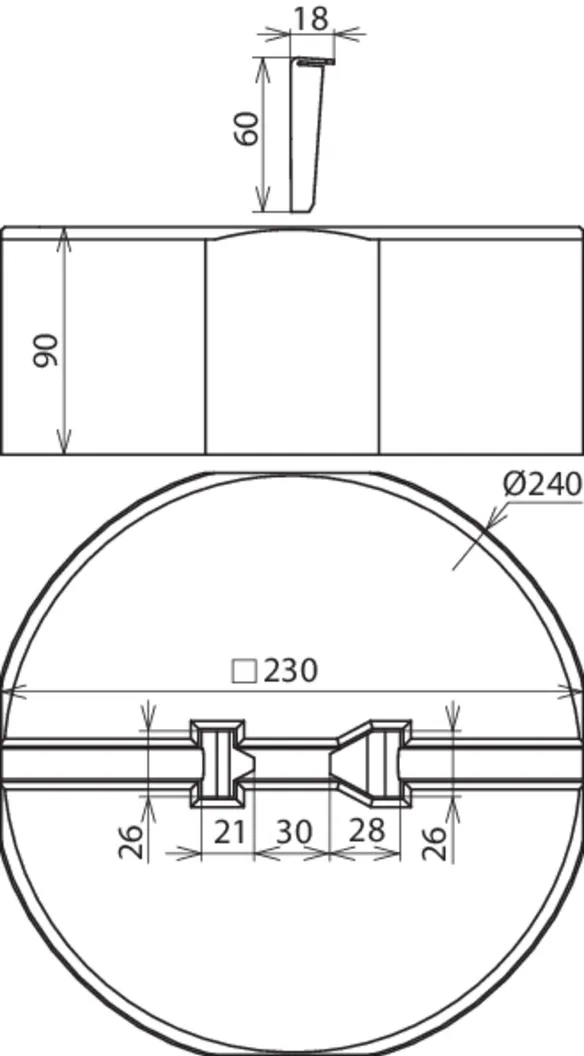

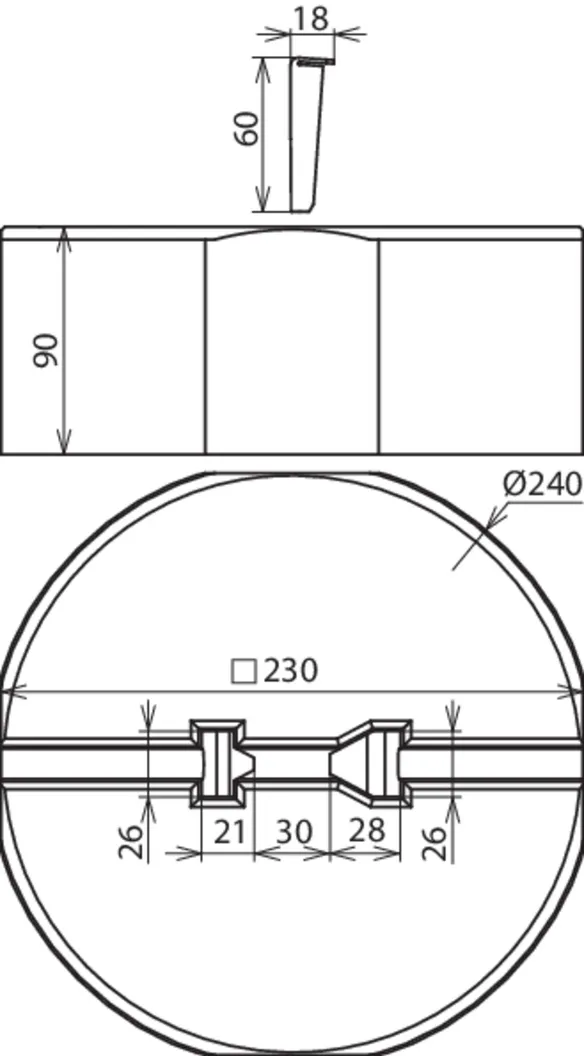

Technical data

Type stackable
Weight 8.5 kg
Support wedge Ø10 / 16 mm
Diameter Ø 240 mm
Material concrete (C45/55)
Material of wedge StSt
