DEHNconnect RK
:quality(98)/dehn.com.tr/store/f/52730662/HDVORSCHAU/919920a1.jpg)

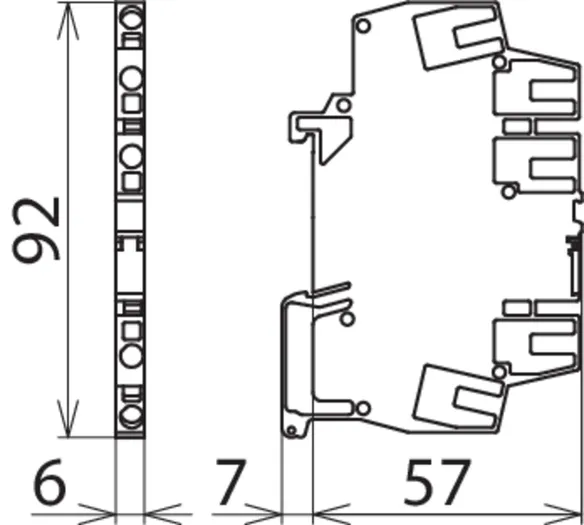

- Minimum installation width (6 mm only)

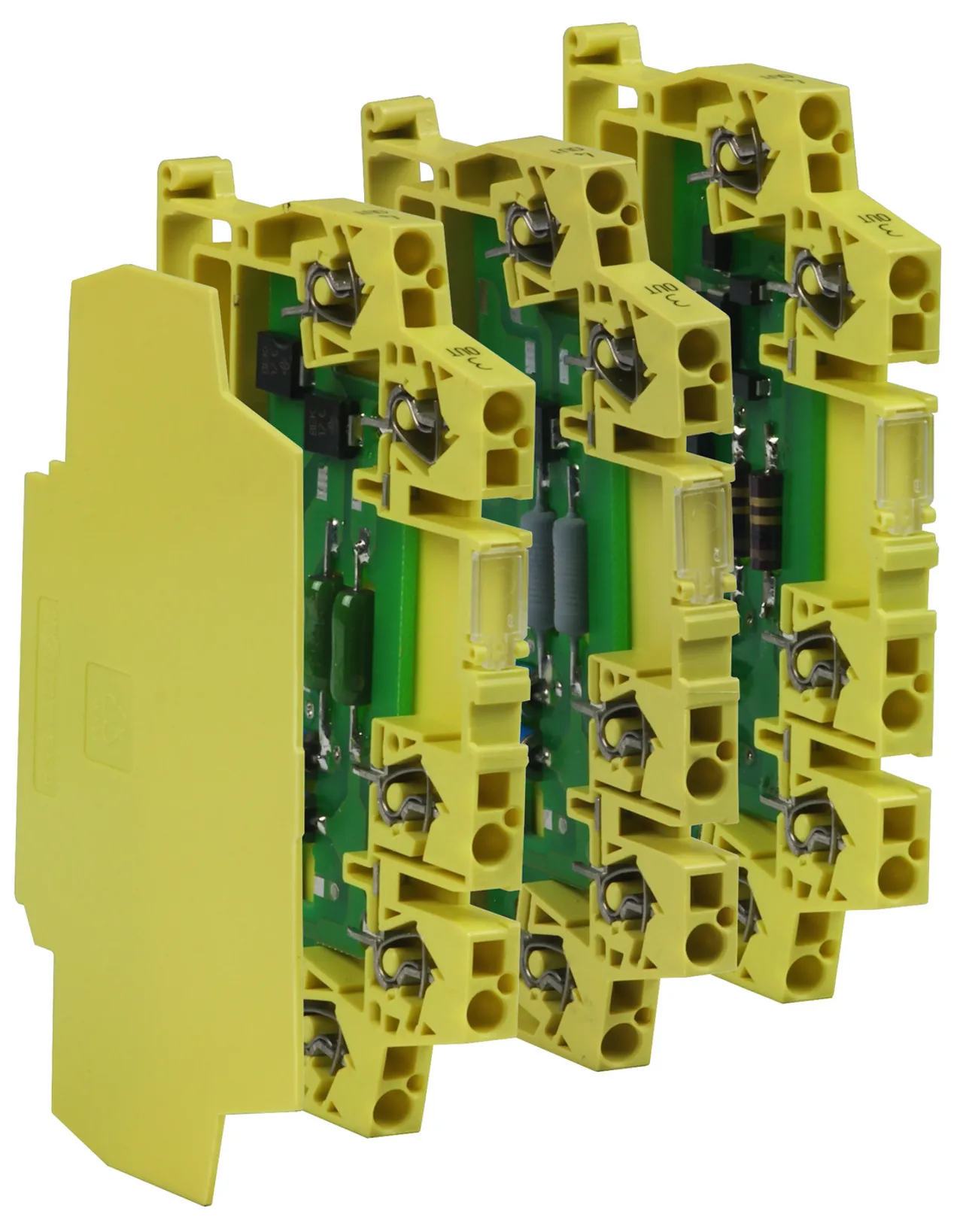

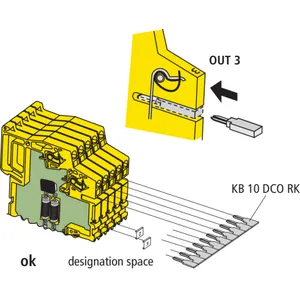

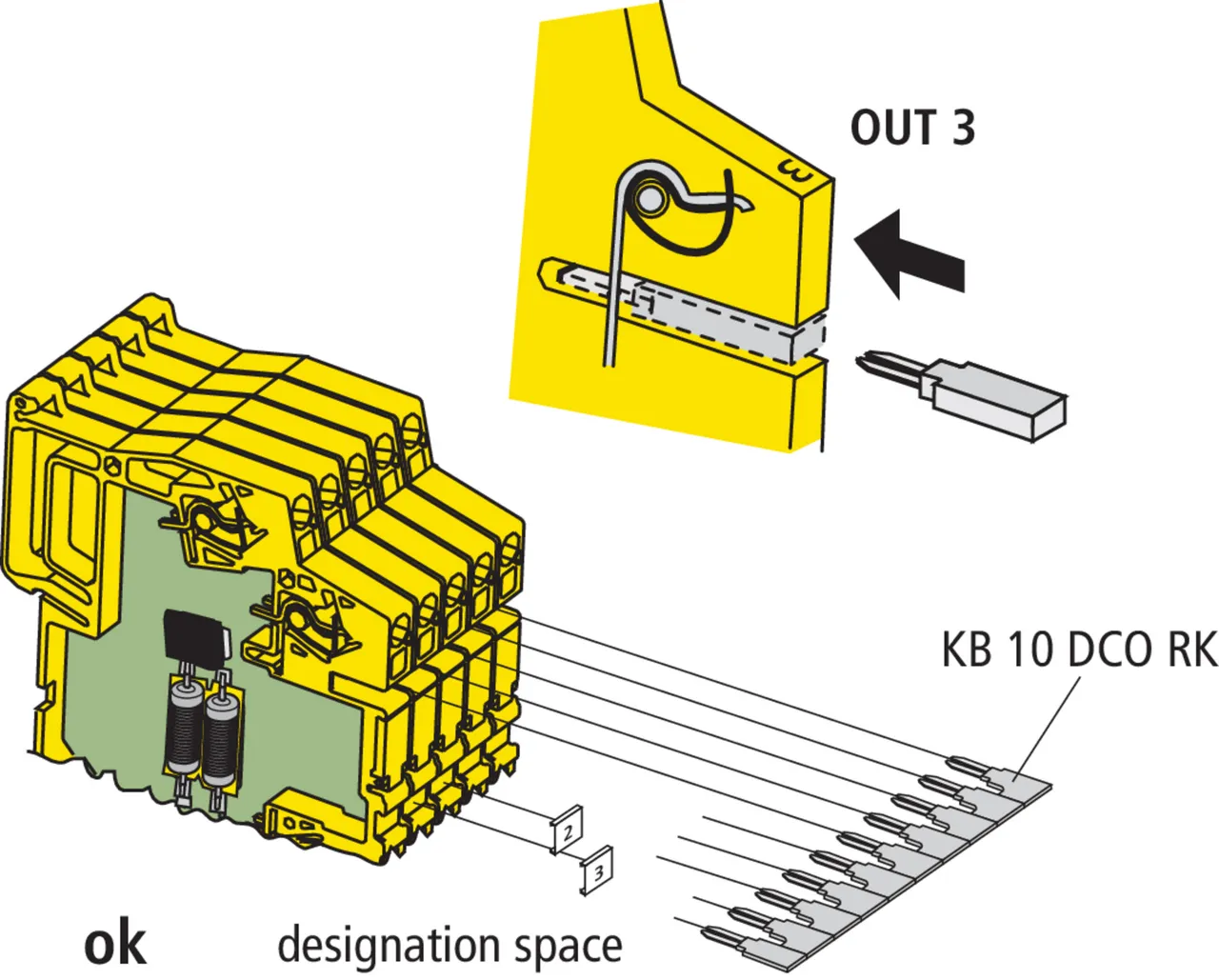

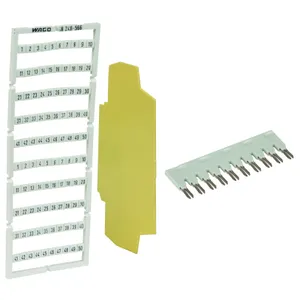

- Quick installation with jumper bar (accessory part)
- Spring-loaded connection system
Details
:quality(98)/dehn.com.tr/store/f/52730664/HDVORSCHAU/919977_Zubehoer.jpg)
:quality(98)/dehn.com.tr/store/f/52730663/HDVORSCHAU/919920_940_970_979.jpg)
:quality(98)/dehn.com.tr/store/f/52730666/HDVORSCHAU/919920az1_E.jpg)
:quality(98)/dehn.com.tr/store/f/52730665/HDVORSCHAU/919920az2.jpg)

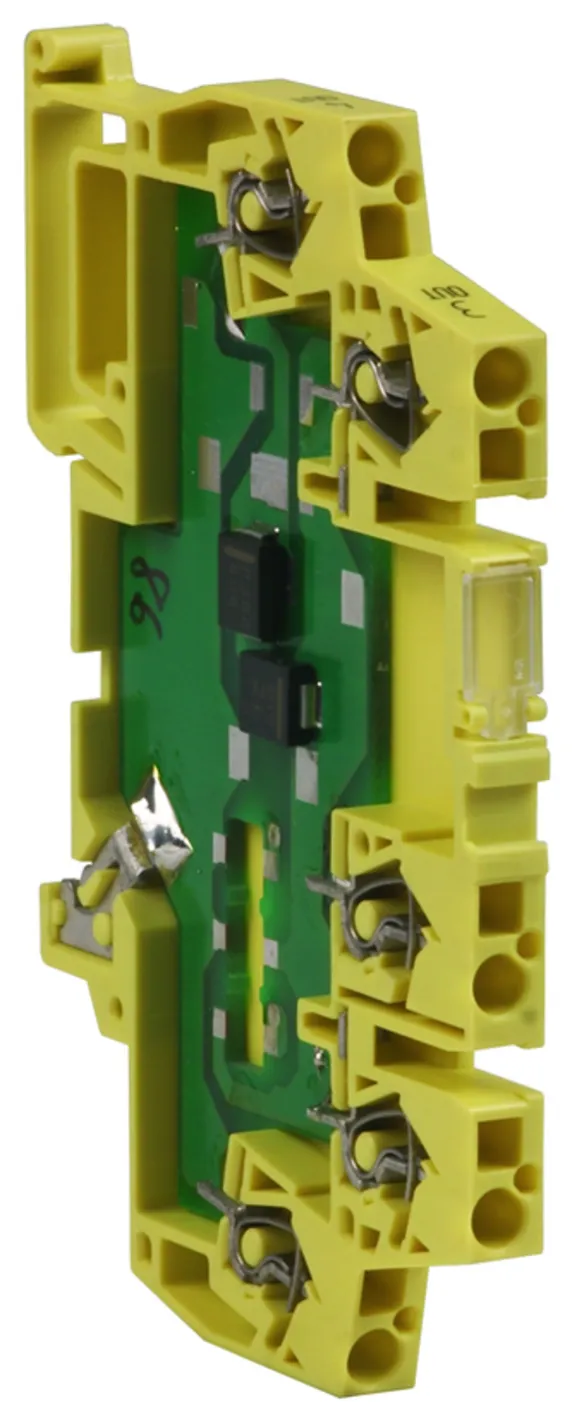

Part No. 919986 DCO RK D 5 24
GTIN 4013364092990, Customs tariff No. (EU): 85363010, Gross weight: 42.00 g, PU: 1.00 pc(s)
Technical data
SPD class | [ |
Max. continuous operating voltage (d.c.) (Uc ) | + 30 V / - 6 V |
Nominal current (IL ) | 10 A |
C1 Total nominal discharge current (8/20 µs) (In ) | 0.3 kA |
*) For more detailed information, please visit www.dehn.de/en/sil/ |
