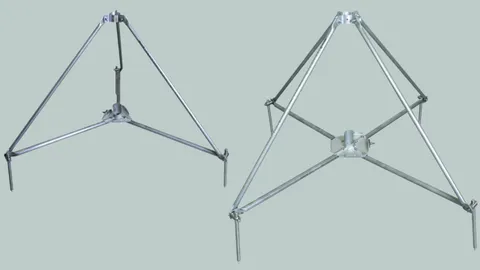

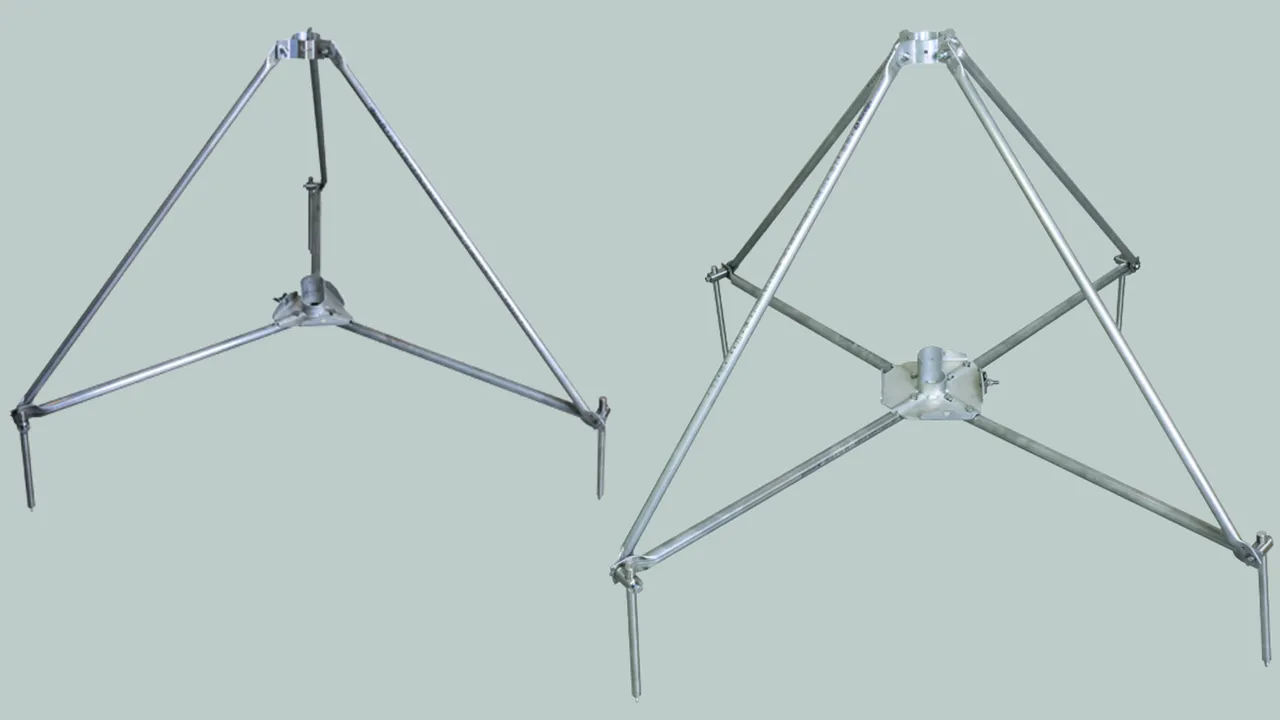

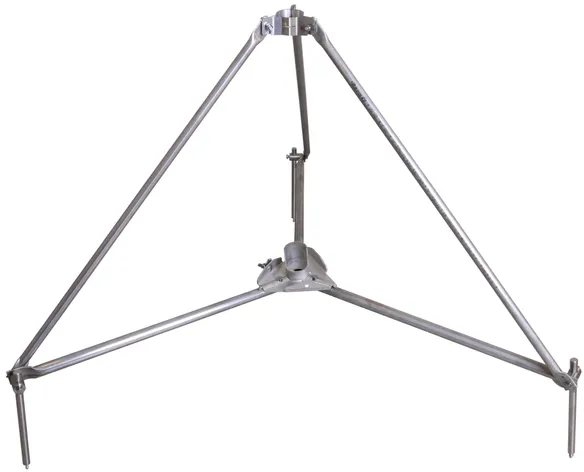

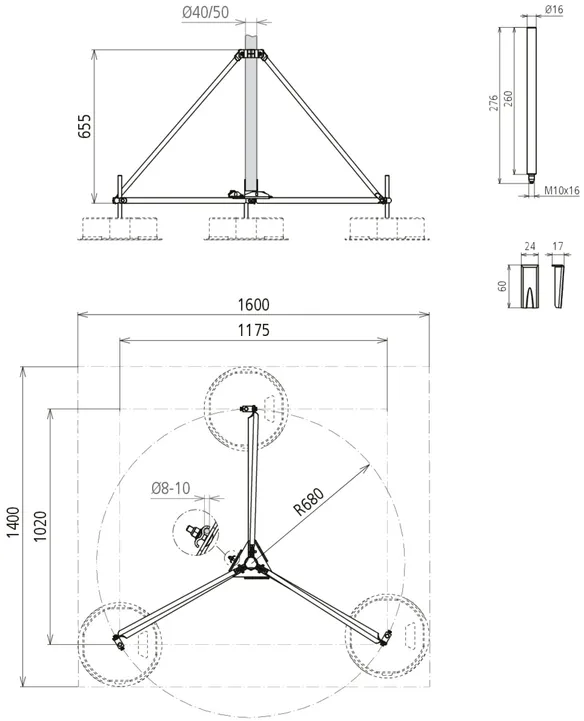

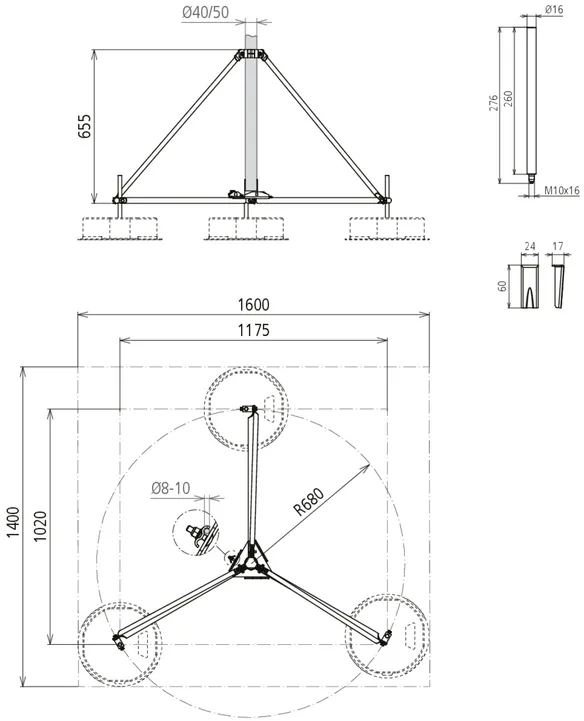

Part No. 107390 DBS KB D50 RA680 V2A
GTIN 4013364478466, Customs tariff No. (EU): 85389099, Gross weight: 7.75 kg, PU: 1.00 pc(s)
PredecessorTechnical data
Material of tripod | StSt |
Support | 50 and 40*) mm |
Radius | 680 mm |
Space required for tripod | 1175 x 1020 mm |
*) Only with adapter set part no. 107 399. |

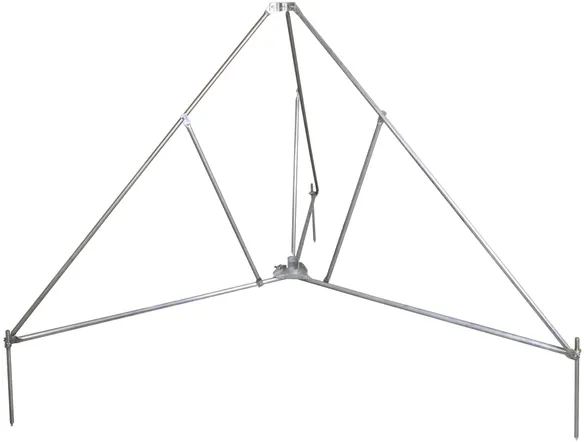

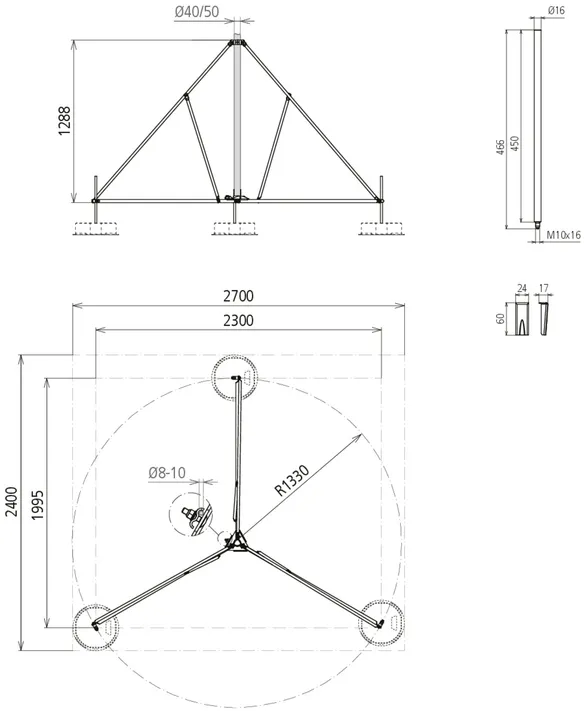

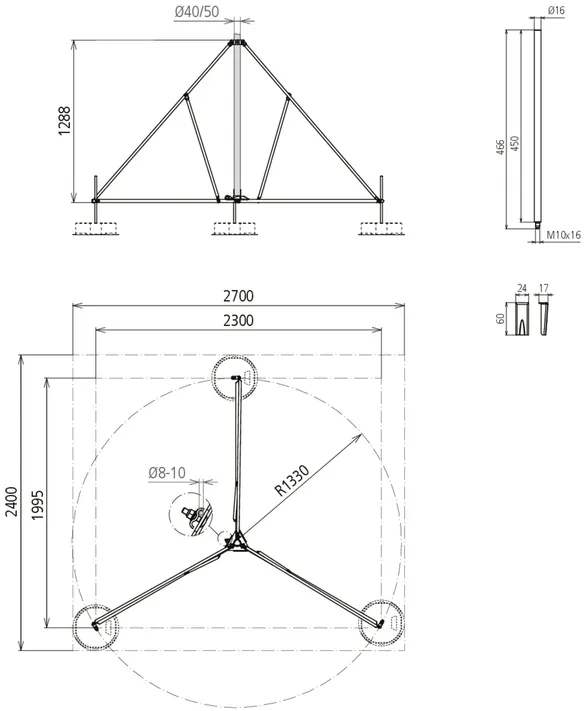

Part No. 107391 DBS KB D50 RA1330 V2A
GTIN 4013364478473, Customs tariff No. (EU): 85389099, Gross weight: 15.60 kg, PU: 1.00 pc(s)
PredecessorTechnical data
Material of tripod | StSt |
Support | 50 and 40*) mm |
Radius | 1330 mm |
Space required for tripod | 2300 x 1995 mm |
*) Only with adapter set part no. 107 399. |

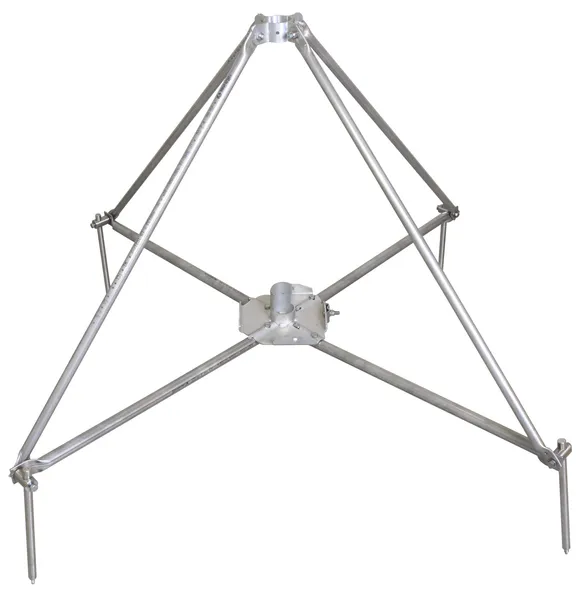

Four-legged stand, small
For air-termination rods D40, D50 and D60, DEHNiso Combi supporting tubes with air-termination rod / tip or HVI Conductor installed in / on the supporting tube.
Connection with double clamp for 2x Rd 8–10 mm [lightning-current-carrying capability 100 kA (10/350 µs)].
1 Product

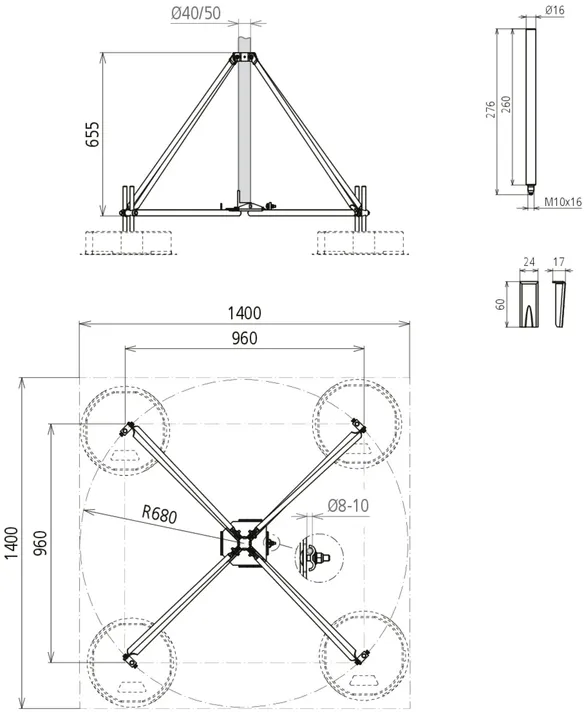

Part No. 107490 VBS KB D50 RA680 V2A
GTIN 4013364478480, Customs tariff No. (EU): 85389099, Gross weight: 10.38 kg, PU: 1.00 pc(s)
Technical data
Material of tripod | StSt |
Support | 50 and 40*) mm |
Radius | 680 mm |
Space required for tripod | 960 x 960 mm |
*) Only with adapter set part no. 107 399. |
Four-legged stand, large
For air-termination rods D40, D50 and D60, DEHNiso Combi supporting tubes with air-termination rod / tip or HVI Conductor installed in / on the supporting tube.
Connection with double clamp for 2x Rd 8–10 mm [lightning-current-carrying capability 100 kA (10/350 µs)].
1 Product

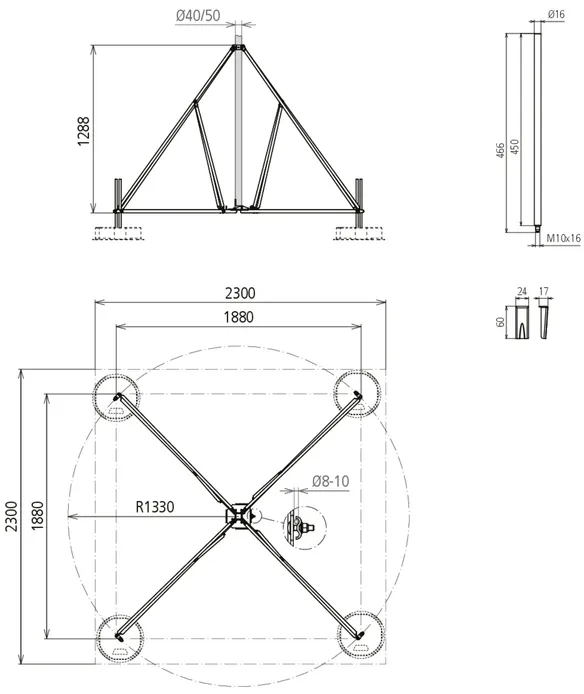

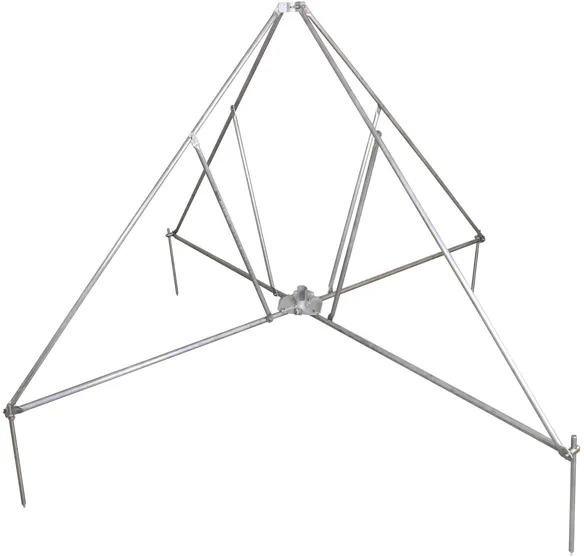

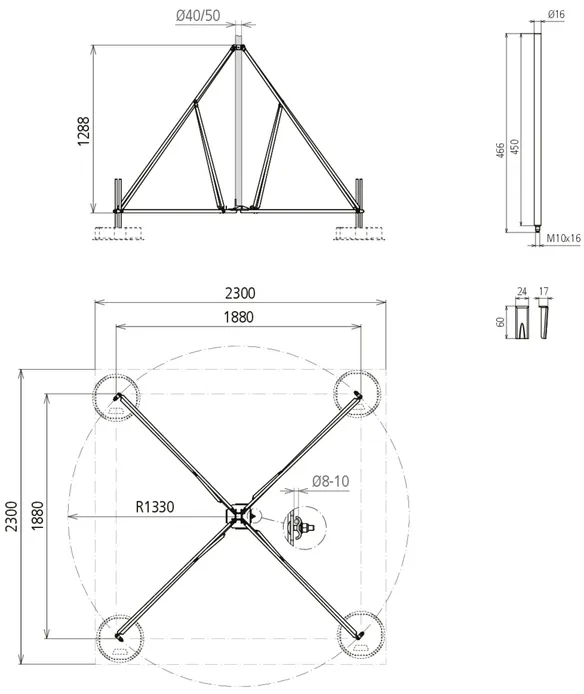

Part No. 107491 VBS KB D50 RA1330 V2A
GTIN 4013364478497, Customs tariff No. (EU): 85389099, Gross weight: 17.63 kg, PU: 1.00 pc(s)
Technical data
Material of tripod | StSt |
Support | 50 and 40*) mm |
Radius | 1330 mm |
Space required for tripod | 1880 x 1880 mm |
*) Only with adapter set part no. 107 399. |

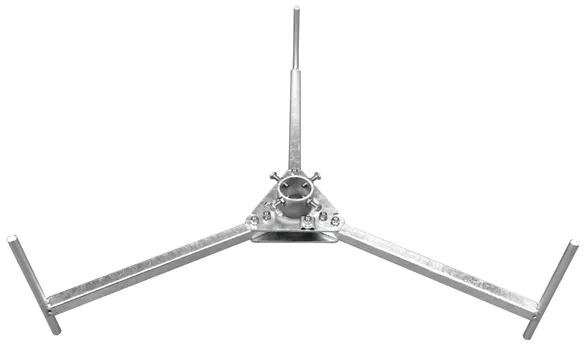

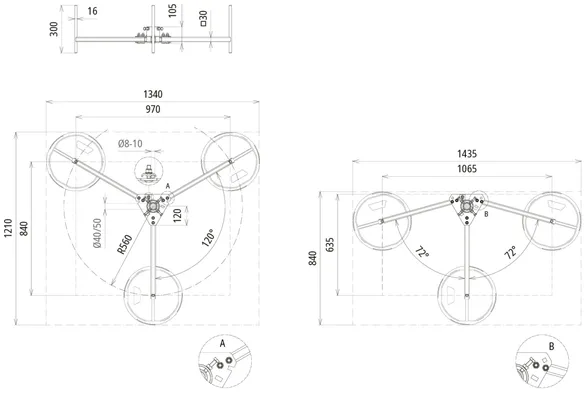

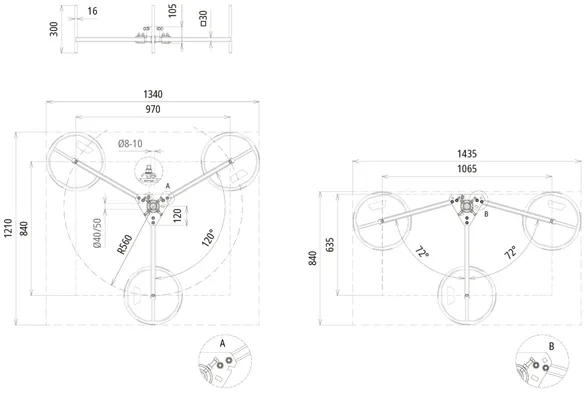

Part No. 105200 DBS KB D40.50 RA560 STTZN
GTIN 4013364095908, Customs tariff No. (EU): 85389099, Gross weight: 9.60 kg, PU: 1.00 pc(s)
Technical data
Material of tripod | St/tZn |
Support | Ø40 / 50 mm |
Radius | 560 mm |
Space required for tripod | 1200 x 1330 mm |
Standard | EN 62561-1 |

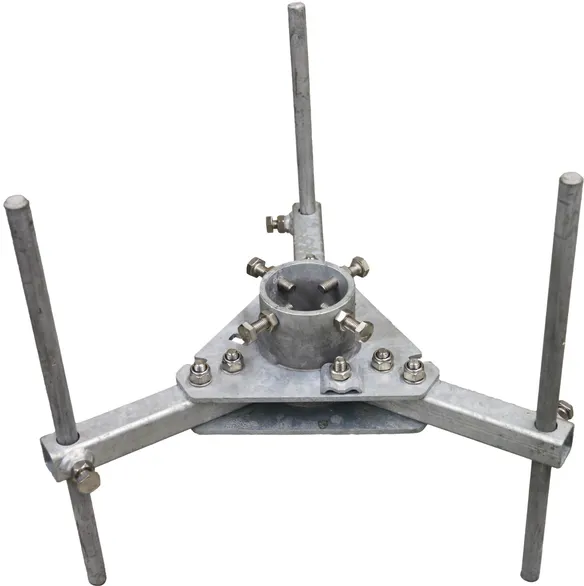

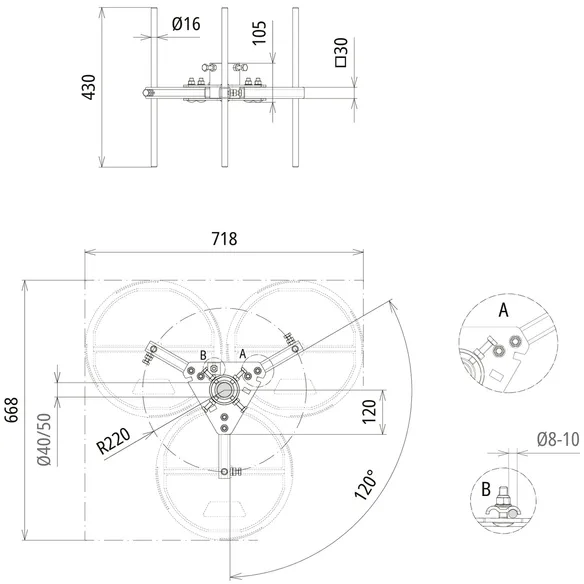

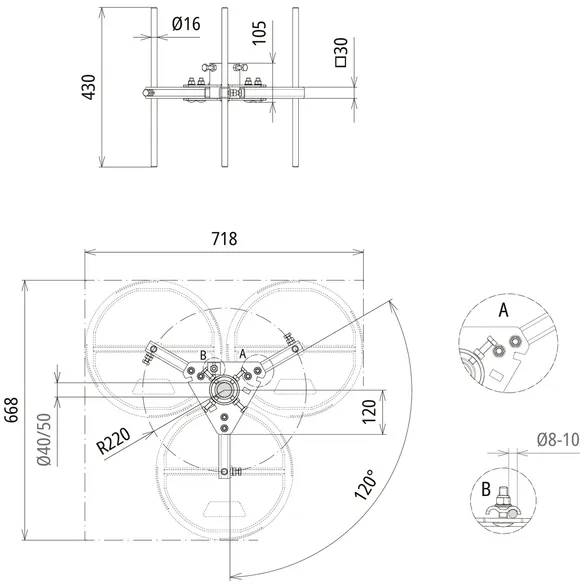

Part No. 105357 DBS KB D40.50 RA220 STTZN
GTIN 4013364527829, Customs tariff No. (EU): 85389099, Gross weight: 7.92 kg, PU: 1.00 pc(s)
Technical data
Material of tripod | St/tZn |
Support | 40 / 50 mm |
Radius | 220 mm |
Space required for tripod | 668 x 718 mm |
Standard | DIN EN 62561-1 |

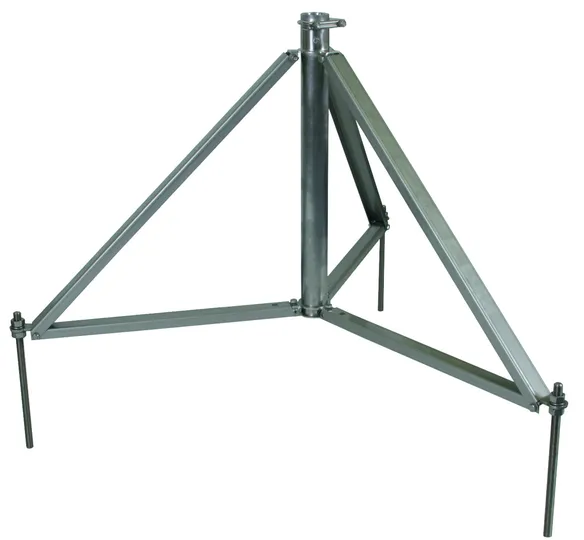

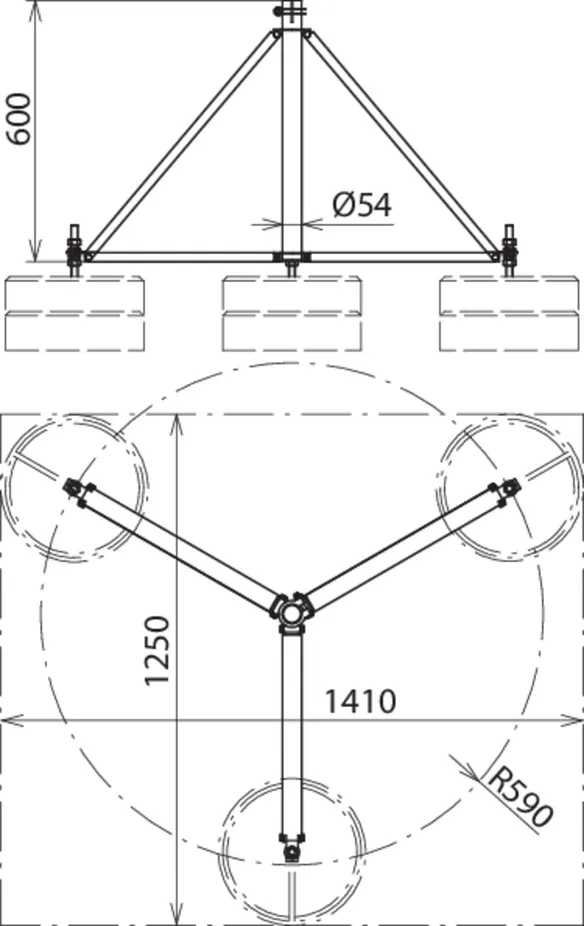

Part No. 105290 DBS KB D40.50 RA590 V2A
GTIN 4013364126046, Customs tariff No. (EU): 85389099, Gross weight: 8.40 kg, PU: 1.00 pc(s)
Technical data
Material of tripod | StSt |
Support | Ø40 / 50 mm |
Radius | 590 mm |
Space required for tripod | 1230 x 1370 mm |

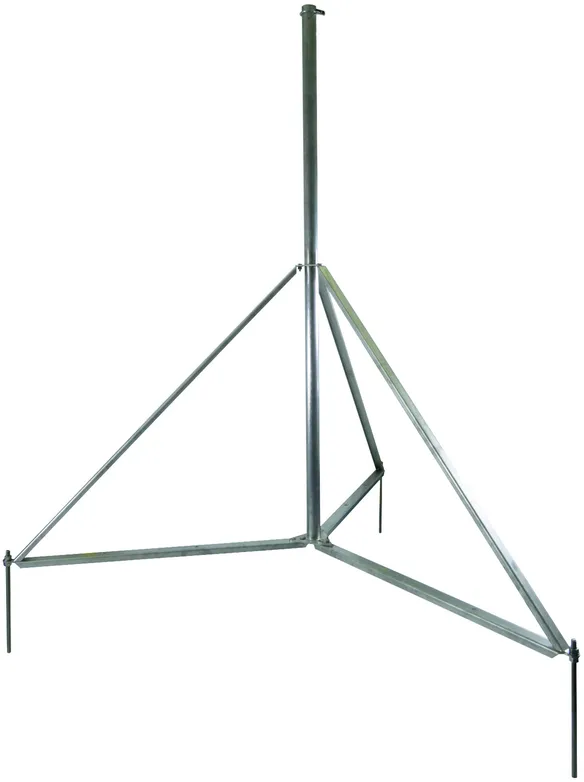

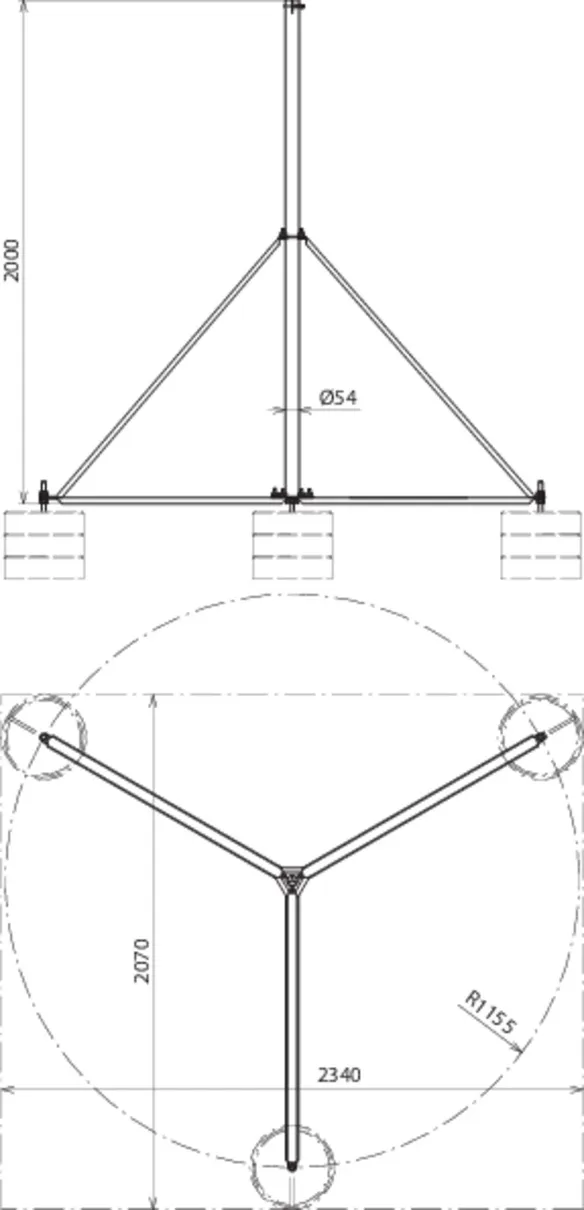

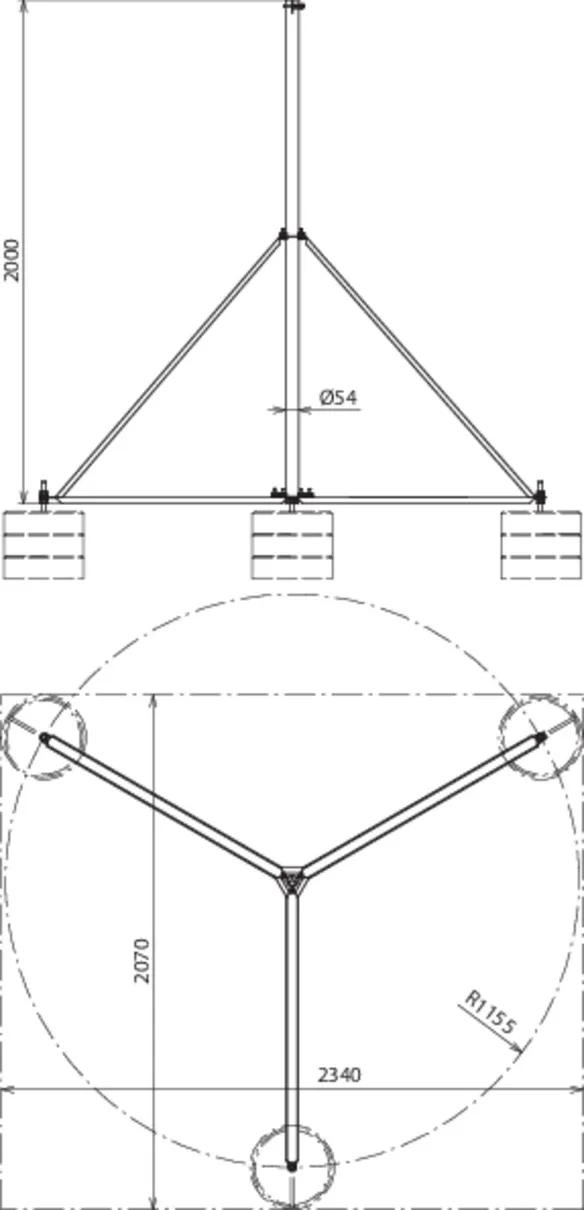

Part No. 105291 DBS KB D40.50 RA1100 V2A
GTIN 4013364126053, Customs tariff No. (EU): 85389099, Gross weight: 19.00 kg, PU: 1.00 pc(s)
Technical data
Material of tripod | StSt |
Support | Ø40 / 50 mm |
Radius | 1155 mm |
Space required for tripod | 2050 x 2300 mm |
