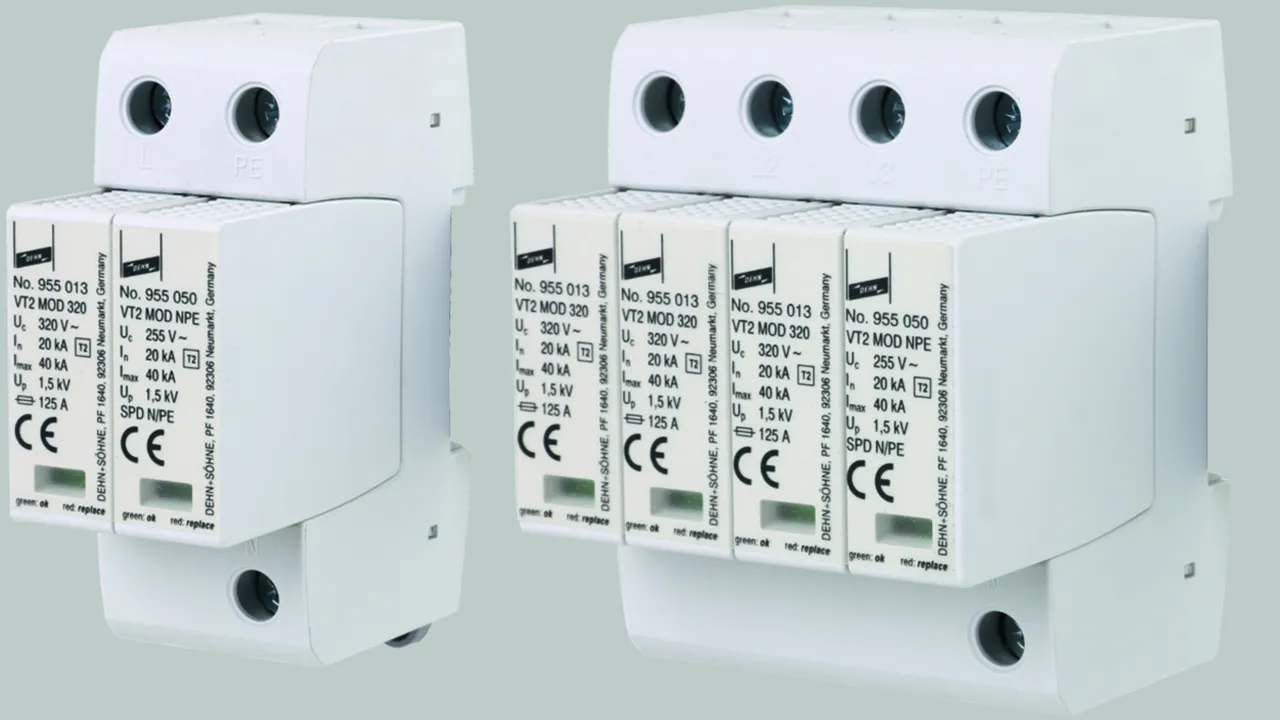

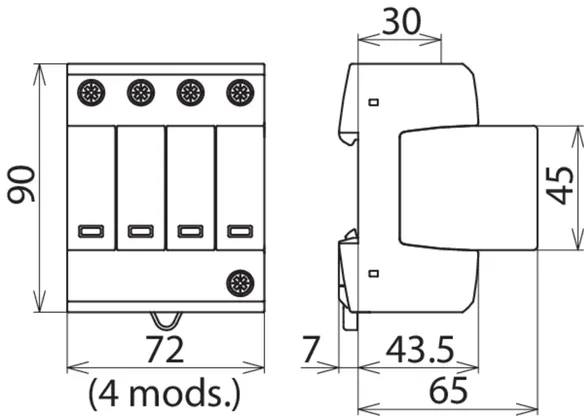

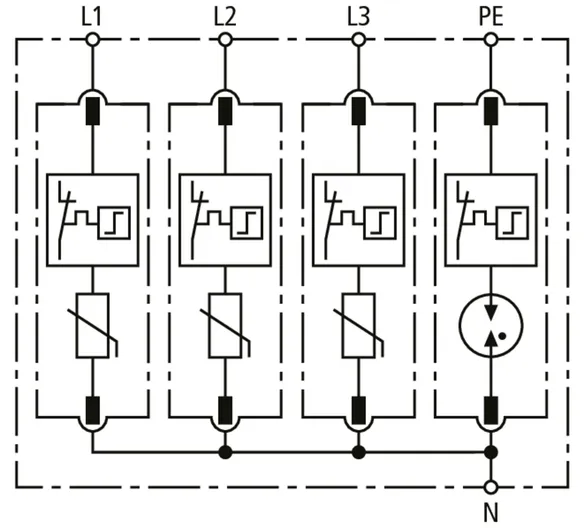

Part No. 955320 VT2 M TT 320

GTIN 4013364369108, Customs tariff No. (EU): 85363030, Gross weight: 442.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Product 955320 was added to Notepad.

Go to Notepad

Product 955320 was added to the cart.

Go to Web-Shop

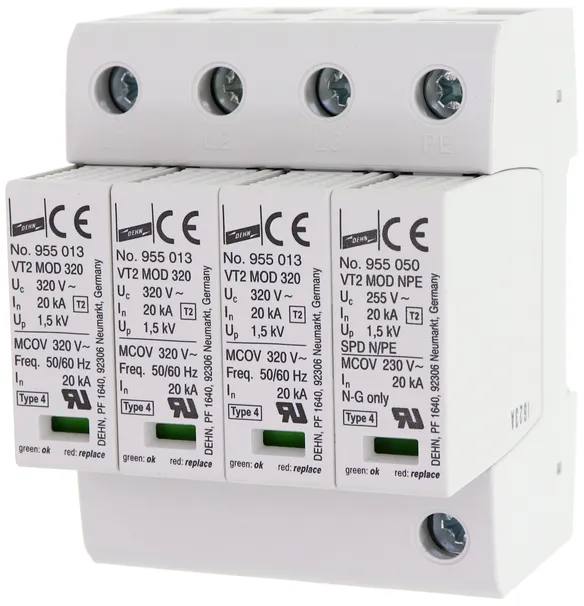

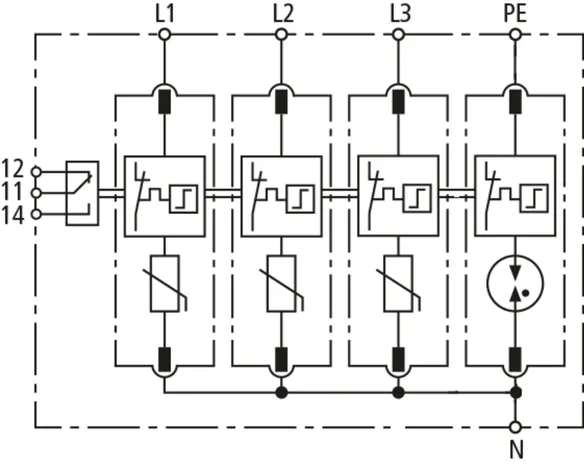

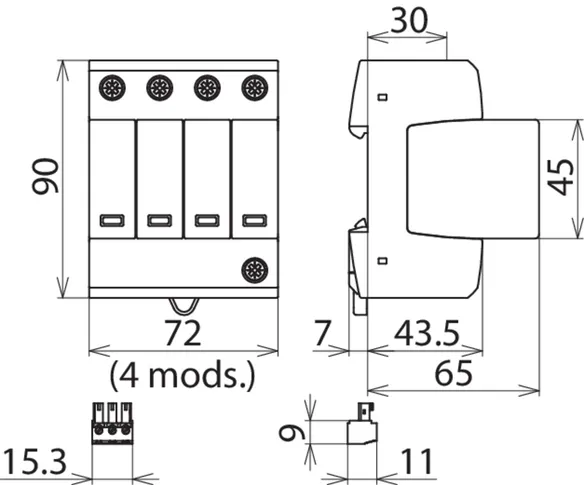

Part No. 955325 VT2 M TT 320 FM

GTIN 4013364369122, Customs tariff No. (EU): 85363030, Gross weight: 450.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Product 955325 was added to Notepad.

Go to Notepad

Product 955325 was added to the cart.

Go to Web-Shop

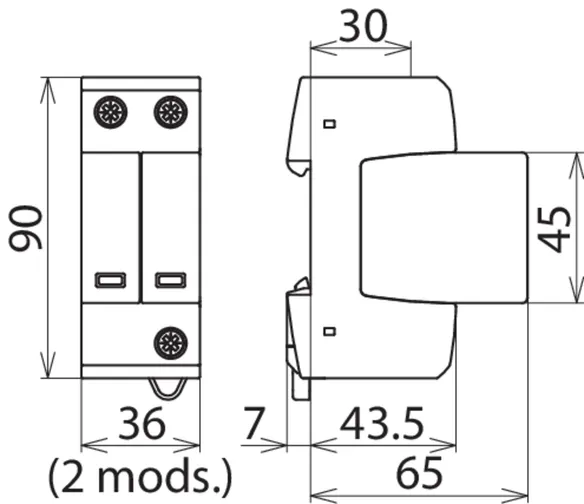

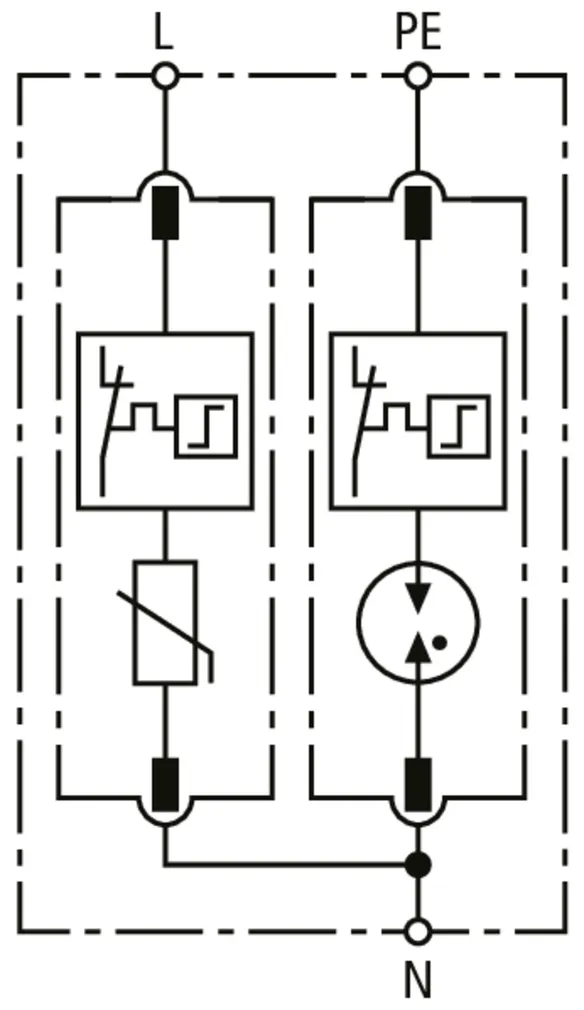

Part No. 955130 VT2 M TT 2P 320

GTIN 4013364369115, Customs tariff No. (EU): 85363030, Gross weight: 263.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Product 955130 was added to Notepad.

Go to Notepad

Product 955130 was added to the cart.

Go to Web-Shop

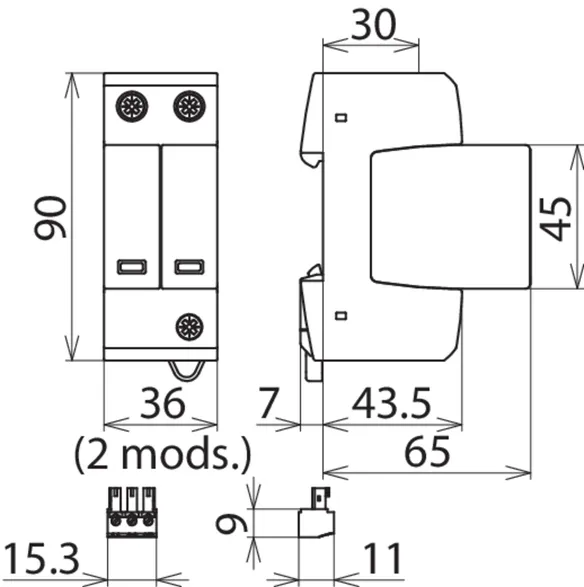

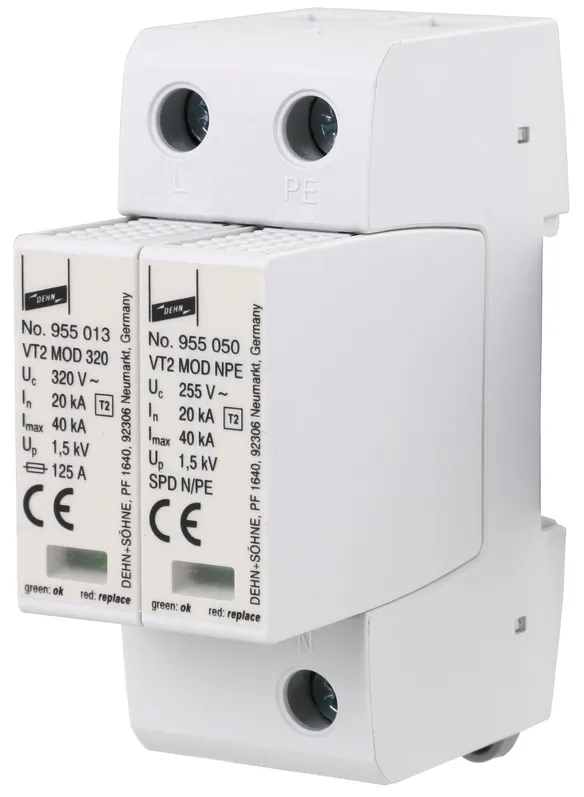

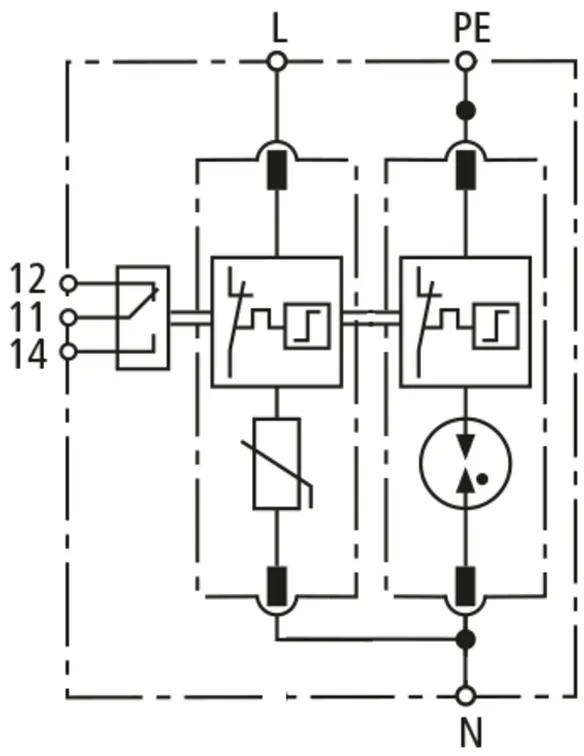

Part No. 955135 VT2 M TT 2P 320 FM

GTIN 4013364369092, Customs tariff No. (EU): 85363030, Gross weight: 269.20 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	12 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Voltage protection level [L-N]/[N-PE] at 5 kA (U_P )	≤ 1.2 / ≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
Voltage protection level [L-PE] (U_P )	1.75 kV

Product 955135 was added to Notepad.

Go to Notepad

Product 955135 was added to the cart.

Go to Web-Shop

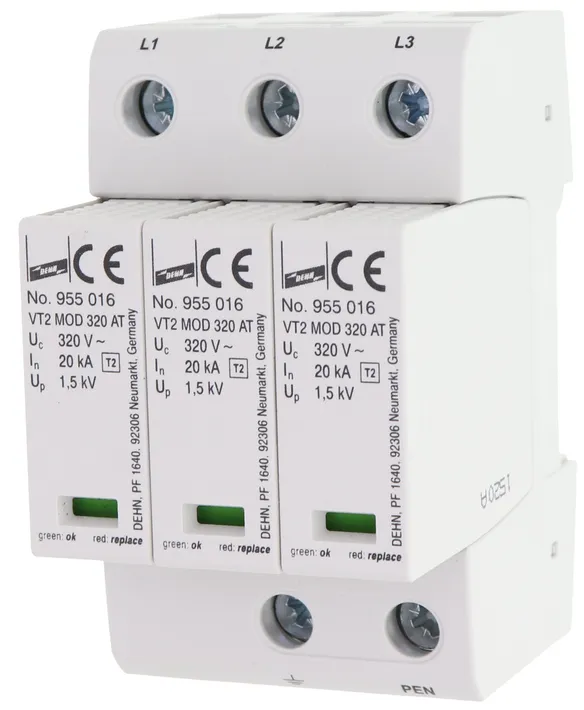

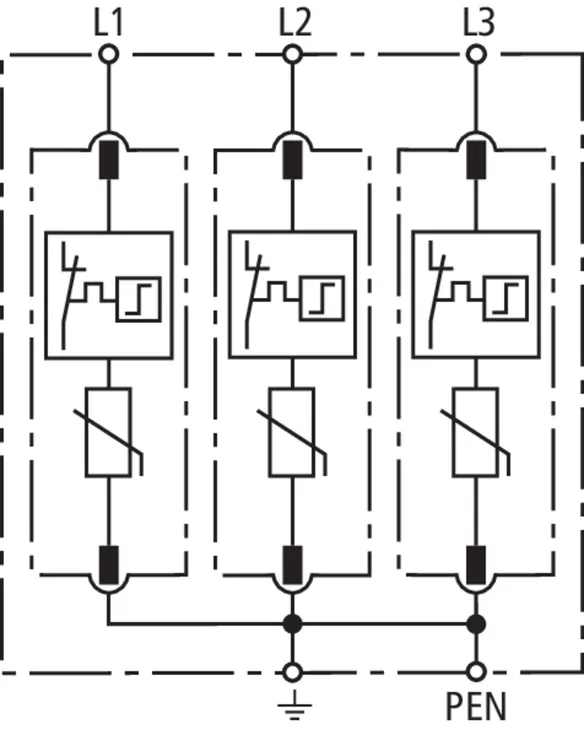

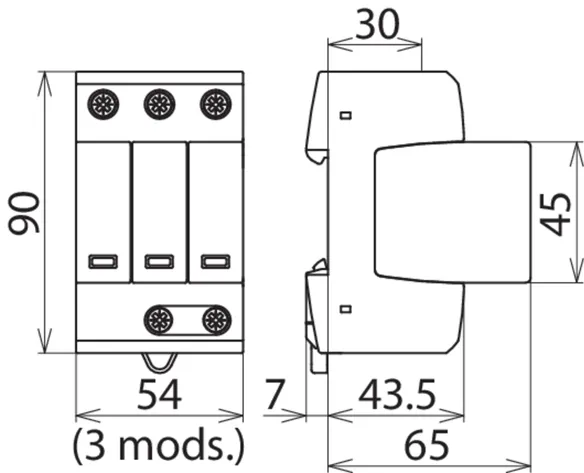

Part No. 955300 VT2 M TNC 320 AT

GTIN 4013364439788, Customs tariff No. (EU): 85363030, Gross weight: 357.40 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880

Product 955300 was added to Notepad.

Go to Notepad

Product 955300 was added to the cart.

Go to Web-Shop

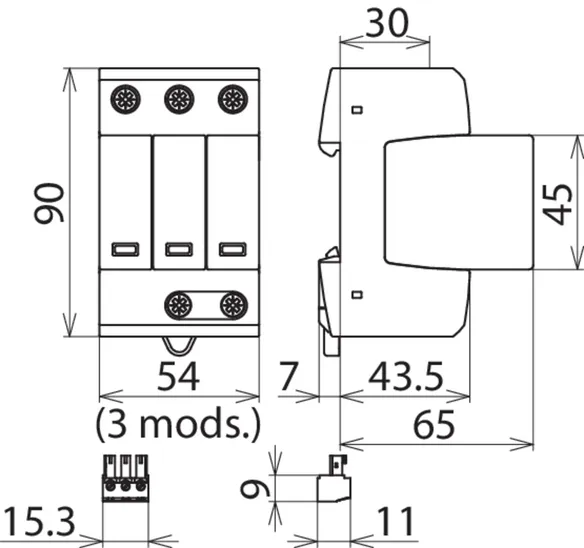

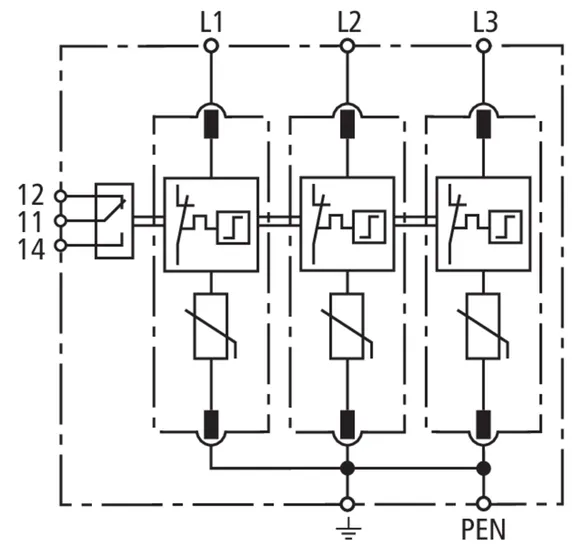

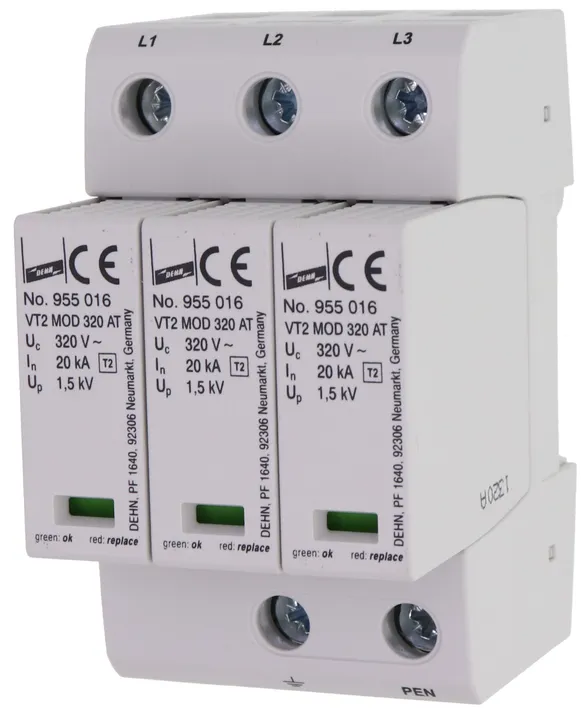

Part No. 955305 VT2 M TNC 320 FM AT

GTIN 4013364439795, Customs tariff No. (EU): 85363030, Gross weight: 365.86 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Certificates

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	125 A gG
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Voltage protection level at 5 kA (U_P )	≤ 1 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	125 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Product 955305 was added to Notepad.

Go to Notepad

Product 955305 was added to the cart.

Go to Web-Shop

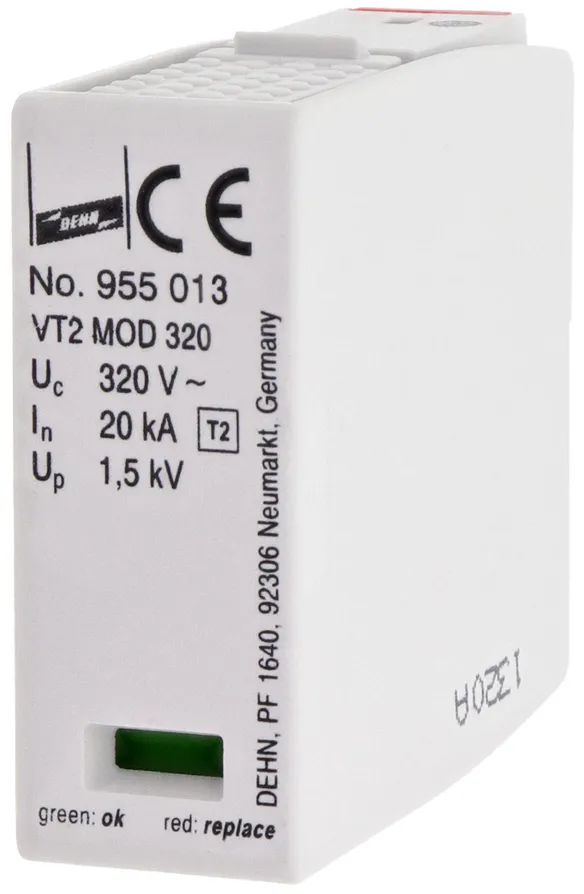

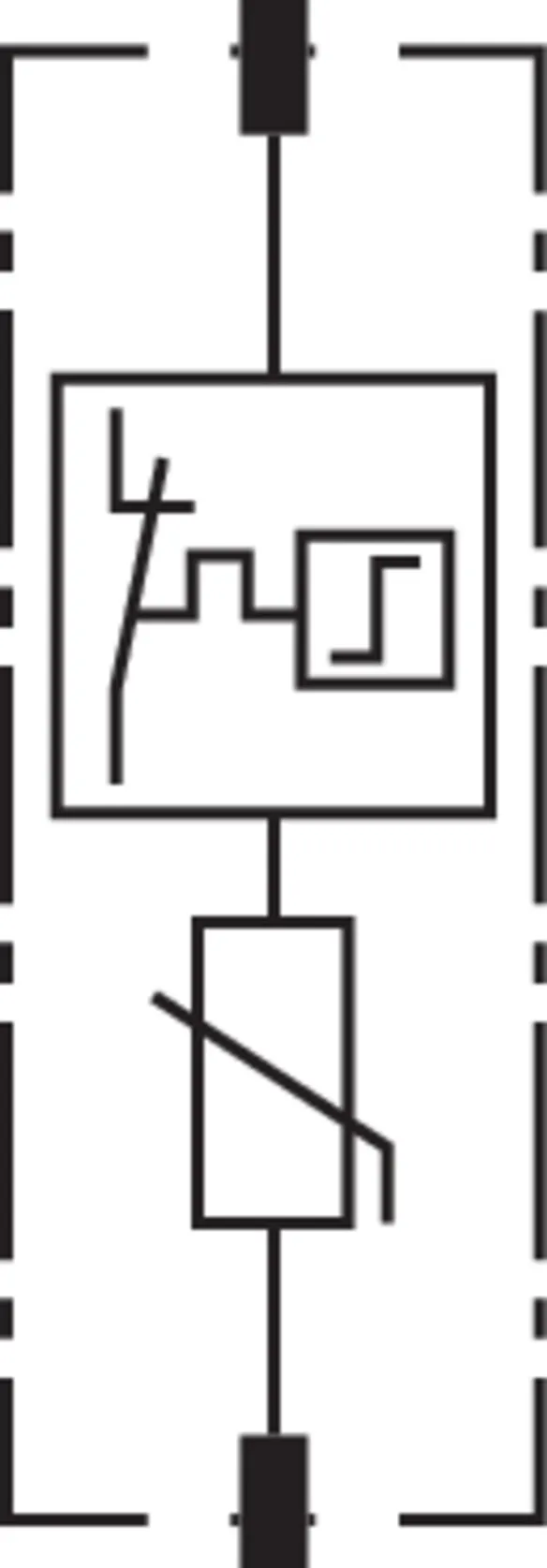

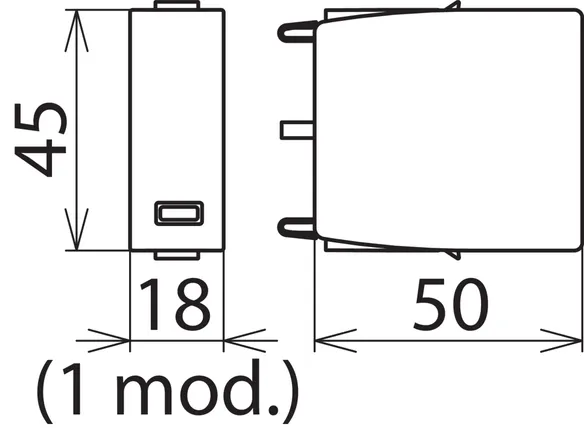

Part No. 955013 VT2 MOD 320

GTIN 4013364376083, Customs tariff No. (EU): 85363030, Gross weight: 52.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA

Product 955013 was added to Notepad.

Go to Notepad

Product 955013 was added to the cart.

Go to Web-Shop

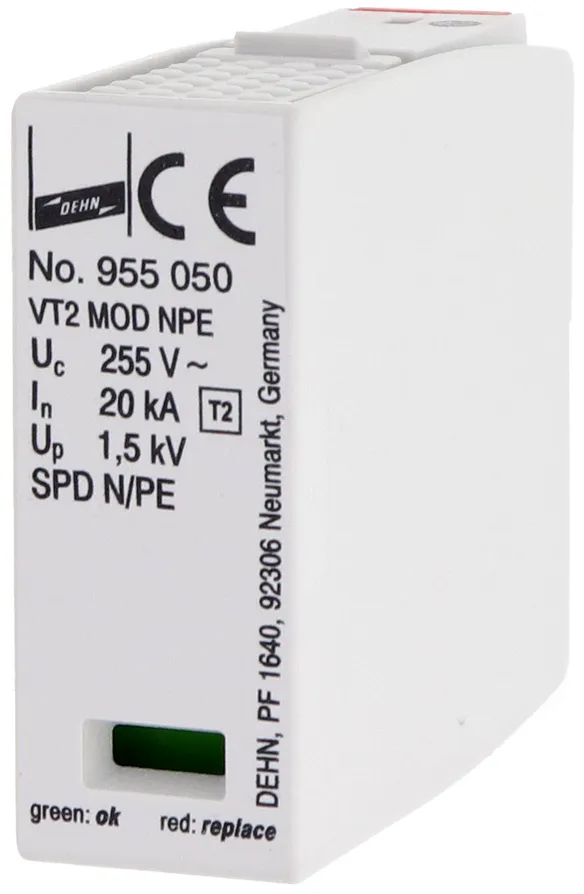

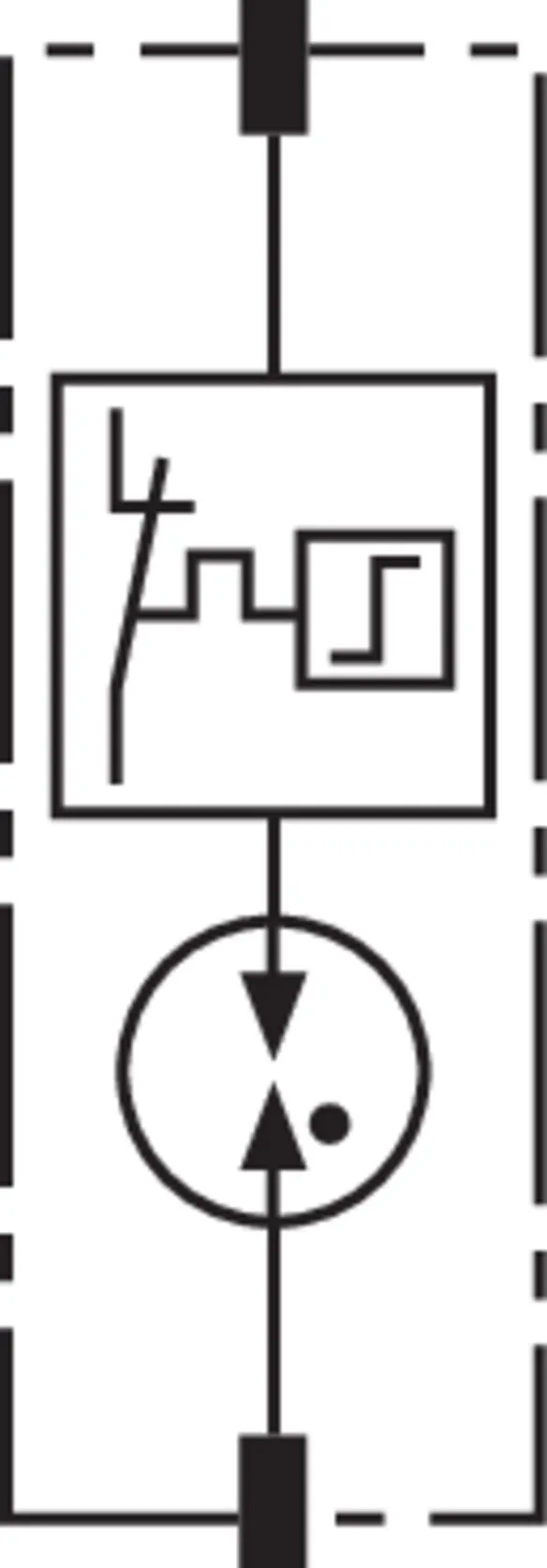

Part No. 955050 VT2 MOD NPE

GTIN 4013364376090, Customs tariff No. (EU): 85363030, Gross weight: 44.00 g, PU: 1.00 pc(s)

Images

Additional information

Certificates

Technical data

Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA

Product 955050 was added to Notepad.

Go to Notepad

Product 955050 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

SPD VT2

SPD VT2 TT (FM)

Part No. 955320 VT2 M TT 320

Product 955320 was added to Notepad.

Product 955320 was added to the cart.

Part No. 955325 VT2 M TT 320 FM

Product 955325 was added to Notepad.

Product 955325 was added to the cart.

SPD VT2 TT 2P (FM)

Part No. 955130 VT2 M TT 2P 320

Product 955130 was added to Notepad.

Product 955130 was added to the cart.

Part No. 955135 VT2 M TT 2P 320 FM

Product 955135 was added to Notepad.

Product 955135 was added to the cart.

SPD VT2 TNC (FM)

Part No. 955300 VT2 M TNC 320 AT

Product 955300 was added to Notepad.

Product 955300 was added to the cart.

Part No. 955305 VT2 M TNC 320 FM AT

Product 955305 was added to Notepad.

Product 955305 was added to the cart.

Varistor-based Protection Module for VT2

Part No. 955013 VT2 MOD 320

Product 955013 was added to Notepad.

Product 955013 was added to the cart.

N-PE Spark-Gap-Based Protection Module for VT2

Part No. 955050 VT2 MOD NPE

Product 955050 was added to Notepad.

Product 955050 was added to the cart.

SPD VT2

SPD VT2 TT (FM)

Part No. 955320 VT2 M TT 320

You are not authorized to download PLP DG 4P.stp

You are not authorized to download PLP DG 4P.igs

You are not authorized to download PLP DG 4P.jt

You are not authorized to download PLP DG 4P.dwg

You are not authorized to download 955320m_E.dxf

Product 955320 was added to Notepad.

Product 955320 was added to the cart.

Part No. 955325 VT2 M TT 320 FM

You are not authorized to download PLP DG 4P FM.stp

You are not authorized to download PLP DG 4P FM.igs

You are not authorized to download PLP DG 4P FM.jt

You are not authorized to download PLP DG 4P FM.dwg

You are not authorized to download 955325m_E.dxf

Product 955325 was added to Notepad.

Product 955325 was added to the cart.

SPD VT2 TT 2P (FM)

Part No. 955130 VT2 M TT 2P 320

You are not authorized to download PLP DG 2P.stp

You are not authorized to download PLP DG 2P.igs

You are not authorized to download PLP DG 2P.jt

You are not authorized to download PLP DG 2P.dwg

You are not authorized to download 955130m_E.dxf

Product 955130 was added to Notepad.

Product 955130 was added to the cart.

Part No. 955135 VT2 M TT 2P 320 FM

You are not authorized to download PLP DG 2P FM.stp

You are not authorized to download PLP DG 2P FM.igs

You are not authorized to download PLP DG 2P FM.jt

You are not authorized to download PLP DG 2P FM.dwg

You are not authorized to download 955135m_E.dxf

Product 955135 was added to Notepad.

Product 955135 was added to the cart.

SPD VT2 TNC (FM)

Part No. 955300 VT2 M TNC 320 AT

You are not authorized to download 952305.stp

You are not authorized to download 952305.igs

You are not authorized to download 952305.jt

You are not authorized to download 952305.dwg

You are not authorized to download 952305m_E.dxf

Product 955300 was added to Notepad.

Product 955300 was added to the cart.

Part No. 955305 VT2 M TNC 320 FM AT

You are not authorized to download 952305.stp

You are not authorized to download 952305.igs

You are not authorized to download 952305.jt

You are not authorized to download 952305.dwg

You are not authorized to download 952305m_E.dxf

Product 955305 was added to Notepad.

Product 955305 was added to the cart.

Varistor-based Protection Module for VT2

Part No. 955013 VT2 MOD 320

Product 955013 was added to Notepad.

Product 955013 was added to the cart.

N-PE Spark-Gap-Based Protection Module for VT2

Part No. 955050 VT2 MOD NPE

Product 955050 was added to Notepad.

Product 955050 was added to the cart.
