Part No. 783033 PHE4 3.3 S

GTIN 4013364310162, Customs tariff No. (EU): 90303370, Gross weight: 2.41 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3.3 kV

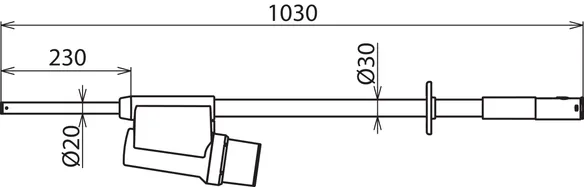

Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3.3 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783033 was added to Notepad.

Go to Notepad

Product 783033 was added to the cart.

Go to Web-Shop

Part No. 783066 PHE4 6.6 S

GTIN 4013364310148, Customs tariff No. (EU): 90303370, Gross weight: 2.19 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6.6 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6.6 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783066 was added to Notepad.

Go to Notepad

Product 783066 was added to the cart.

Go to Web-Shop

Part No. 783011 PHE4 11 S

GTIN 4013364310131, Customs tariff No. (EU): 90303370, Gross weight: 2.38 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	11 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	11 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783011 was added to Notepad.

Go to Notepad

Product 783011 was added to the cart.

Go to Web-Shop

Part No. 783022 PHE4 22 S

GTIN 4013364310117, Customs tariff No. (EU): 90303370, Gross weight: 2.27 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	22 kV

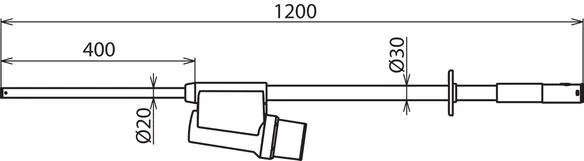

Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
^*) all circuits including test prod

Nominal voltage (U_N )	22 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1200 mm
Insertion depth (l_O )	400 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783022 was added to Notepad.

Go to Notepad

Product 783022 was added to the cart.

Go to Web-Shop

Part No. 783045 PHE4 33 S

GTIN 4013364310094, Customs tariff No. (EU): 90303370, Gross weight: 2.48 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	33 kV

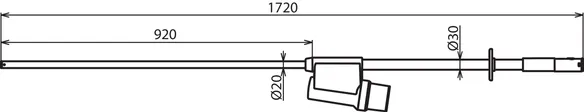

Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	33 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783045 was added to Notepad.

Go to Notepad

Product 783045 was added to the cart.

Go to Web-Shop

Part No. 783233 PHE4 3.3 11 S

GTIN 4013364310063, Customs tariff No. (EU): 90303370, Gross weight: 2.37 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3.3 ... 11 kV

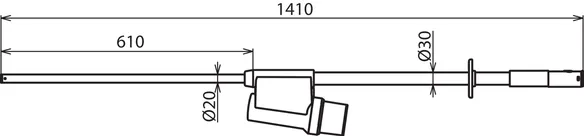

Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3.3 ... 11 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1410 mm
Insertion depth (l_O )	610 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783233 was added to Notepad.

Go to Notepad

Product 783233 was added to the cart.

Go to Web-Shop

Part No. 783243 PHE4 6.6 22 S

GTIN 4013364310018, Customs tariff No. (EU): 90303370, Gross weight: 2.47 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6.6 ... 22 kV

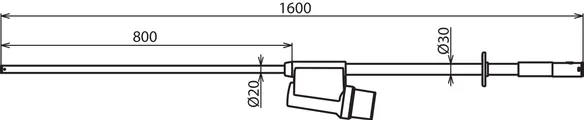

Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6.6 ... 22 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1600 mm
Insertion depth (l_O )	800 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783243 was added to Notepad.

Go to Notepad

Product 783243 was added to the cart.

Go to Web-Shop

Part No. 783255 PHE4 11 33 S

GTIN 4013364309982, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	11 ... 33 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	11 ... 33 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783255 was added to Notepad.

Go to Notepad

Product 783255 was added to the cart.

Go to Web-Shop

Part No. 783511 PHE4 U 6.6 11 S

GTIN 4013364309937, Customs tariff No. (EU): 90303370, Gross weight: 2.19 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	6.6 / 11 kV
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
^*) all circuits including test prod

Nominal voltage (U_N )	6.6 / 11 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1030 mm
Insertion depth (l_O )	230 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783511 was added to Notepad.

Go to Notepad

Product 783511 was added to the cart.

Go to Web-Shop

Part No. 783533 PHE4 U 3.3 33 S

GTIN 4013364309920, Customs tariff No. (EU): 90303370, Gross weight: 2.53 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Certificates

Technical data

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
^*) all circuits including test prod

Nominal voltage (U_N )	3.3 ... 11 / 11 ... 33 kV
Type of voltage	a.c.
Frequency	50 Hz
Category	S
Total length (l_G )	1720 mm
Insertion depth (l_O )	920 mm
Length (handle) (l_H )	265 mm
Standard	EN/IEC 61243-1 (DIN VDE 0682-411)
Temperature range	–25 °C ... +70 °C, climatic category N and W
Design	Complete
For use in wet weather conditions	Yes
For	Indoor and outdoor installations
Application	Switchgear installations and overhead lines
Design	Single-pole
Indication	Acoustic and visual
Sound level	> 67 dB(A) (visual indication and intermittent sound signal)
Self-testing element *)	Yes
Battery	Lithium AA 1.5 Volt
Material (test electrode)	Copper alloy/gal Sn
Material (test prod)	Glass-fibre reinforced epoxy resin tube
Material (indicator)	Plastic, fully insulated
Material (insulating stick)	Glass-fibre reinforced polyester tube
Diameter (insulating stick)	30 mm
^*) all circuits including test prod

Product 783533 was added to Notepad.

Go to Notepad

Product 783533 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

PHE4 Voltage Detector (British Influenced Voltage Level)

Nominal Voltages up to 33 kV / 50 Hz, M12 Thread

Part No. 783033 PHE4 3.3 S

Product 783033 was added to Notepad.

Product 783033 was added to the cart.

Part No. 783066 PHE4 6.6 S

Product 783066 was added to Notepad.

Product 783066 was added to the cart.

Part No. 783011 PHE4 11 S

Product 783011 was added to Notepad.

Product 783011 was added to the cart.

Part No. 783022 PHE4 22 S

Product 783022 was added to Notepad.

Product 783022 was added to the cart.

Part No. 783045 PHE4 33 S

Product 783045 was added to Notepad.

Product 783045 was added to the cart.

Nominal Voltage Ranges up to 33 kV / 50 Hz, M12 Thread

Part No. 783233 PHE4 3.3 11 S

Product 783233 was added to Notepad.

Product 783233 was added to the cart.

Part No. 783243 PHE4 6.6 22 S

Product 783243 was added to Notepad.

Product 783243 was added to the cart.

Part No. 783255 PHE4 11 33 S

Product 783255 was added to Notepad.

Product 783255 was added to the cart.

Nominal Voltage Ranges up to 33 kV / 50 Hz, switchable, M12 Thread

Part No. 783511 PHE4 U 6.6 11 S

Product 783511 was added to Notepad.

Product 783511 was added to the cart.

Part No. 783533 PHE4 U 3.3 33 S

Product 783533 was added to Notepad.

Product 783533 was added to the cart.
